KYN28-33

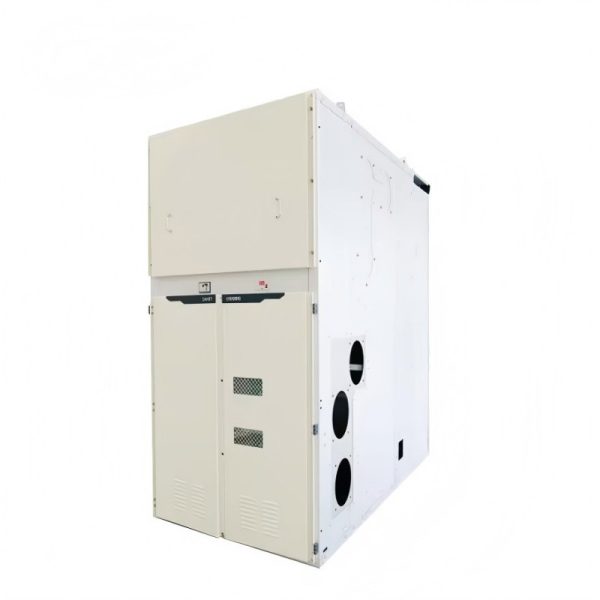

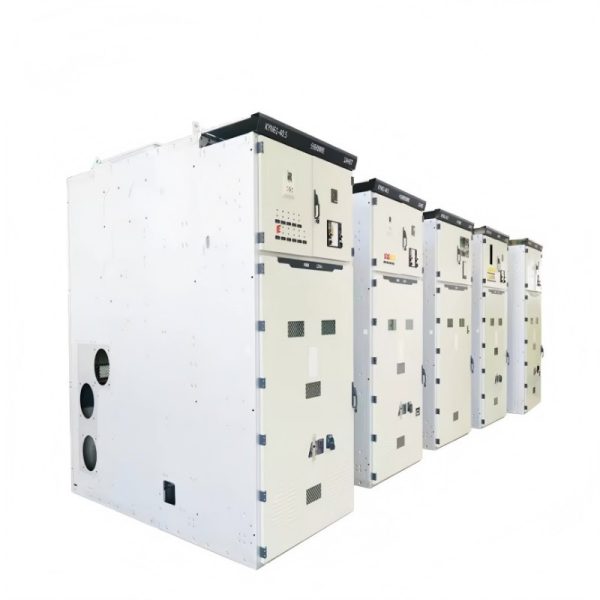

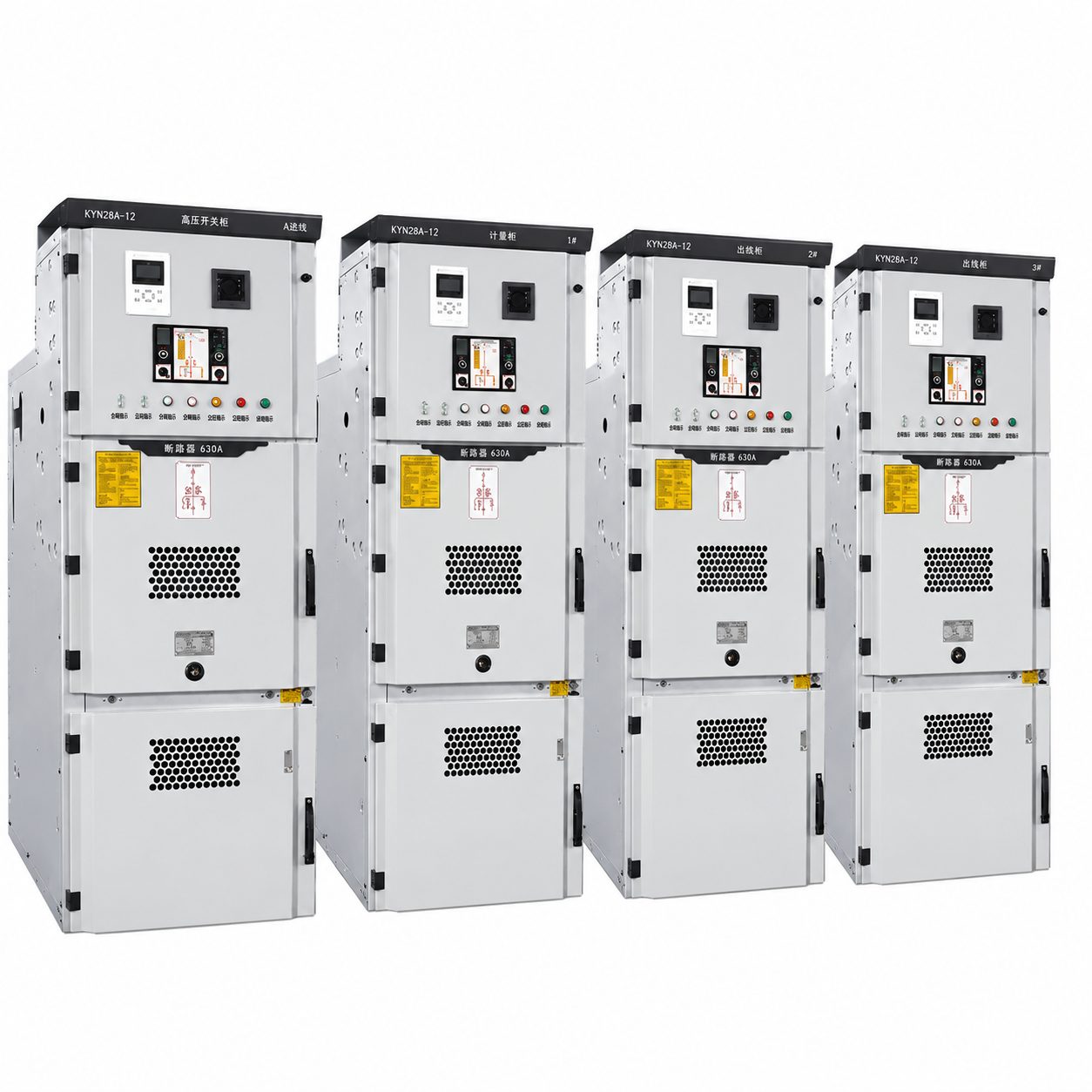

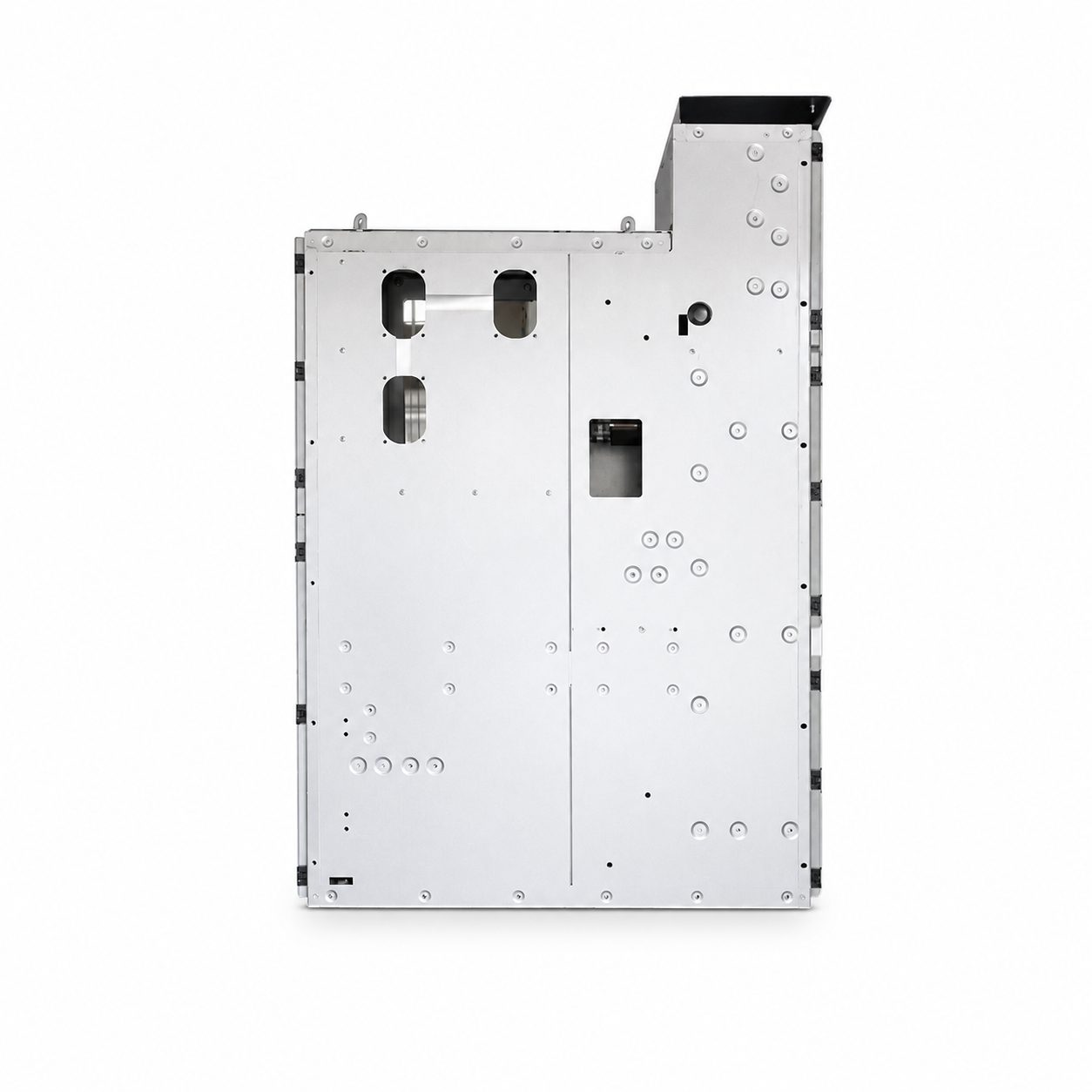

KYN28-33 Indoor Metal – Clad Withdrawable Switchgear
33kV indoor metal armored withdrawable switchgear is an ultra-high voltage equipment designed specifically for overseas British standard areas and special industrial scenarios in China. It complies with GB/T 3906-2020, IEC 62271-200, and BS 1477 standards and is suitable for areas in Europe, the Middle East, Southeast Asia that use 33kV voltage levels, as well as special scenarios such as railway traction and large oil and gas fields in China. The equipment adopts a reinforced modular armor structure, optimized mechanical strength, multi standard compatibility, and traction load adaptability. It has the characteristics of strong anti-interference, high customization, and wide overseas adaptability, and can achieve safe distribution and control of electrical energy under cross standard and complex working conditions.
Features
1. The British standard is mainly compatible with multiple standards, and has strong overseas adaptability:
with the British standard (BS 1477) as the core, it is also compatible with national standards and IEC standards. It can customize 50Hz/60Hz frequencies, British installation dimensions, and local instrument configurations, and can adapt to mainstream 33kV regions such as Europe and the Middle East without additional modifications.
2. Exclusive adaptation for traction loads, excellent impact resistance:
Customized traction protection modules and reinforced circuit breakers can withstand the impact loads and current fluctuations caused by frequent starting and stopping of railway traction locomotives. The mechanical strength is increased by 40% compared to conventional products, making it suitable for railway traction and industrial and mining mobile load scenarios.
3. Upgraded electromagnetic shielding with outstanding anti-interference ability:
Adopting a fully metal shielded cabinet and optimized wiring design, and installing electromagnetic filtering modules, it can effectively resist high-frequency electromagnetic interference generated by traction systems and industrial equipment, ensuring stable operation of equipment in strong interference environments.
4. Bilingual operation and maintenance adaptation, convenient overseas service:
equipped with multilingual operation interfaces and manuals in English, Chinese, and Western languages, intelligent modules supporting multilingual data feedback, manufacturers setting up accessory warehouses in core areas overseas, providing 24-hour bilingual technical support and on-site debugging services.
The rated current of the product is 800A-3150A, the short-circuit breaking capacity is 40kA-63kA, and the short-time withstand current is 25kA-50kA (3s); Support manual/electric integrated operating mechanism, with optional protection levels of IP4X and IP54, and customized anti salt spray version for coastal areas; Provide overseas certification certificates such as UL, CE, BS, etc., compatible with mainstream overseas brand instruments and control modules, and support personalized protection logic customization.
Let’s Get Started
Providing you with the most trusted energy solutions in an unpredictable world.
Contact UsRequest an Insurance Quote
Specification
| PROJECT | UNIT | DATA | |
| Rated voltage | kV | 33 | |
| Rated frequency | Hz | 50 | |
| The rated current of the main bus | A | 630/1250 | |
| Current rating | A | 630/1250 | |
| Ground Loop Rated Short-Time Withstand Current (2S) | kA | 31.5 | |
| Rated short-time withstand current of main circuit (4S) | kA | 25/31.5 | |
| Rated peak withstand current (peak) | kA | 63/80 | |
| Rated short-circuit interrupting current | kA | 25/31.5 | |
| Rated insulation level | 1 minute power frequency withstand voltage | kV | intermittent to the ground: 70 |
| Fracture: 80 | |||
| Withstand voltage for lightning impulses | kV | intermittent to the ground: 185 | |
| Fracture: 215 | |||
| Ingress protection | The shell is IP4X | ||
Download
Related Products
FAQs
What is the core difference between 33kV and 11kV overseas versions?
33kV is suitable for mainstream 33kV regions in Europe and the Middle East, with a focus on railway traction and large-scale industry, and higher parameter capacity; 11kV focuses on niche regions in Southeast Asia and Africa, with a particular emphasis on general industries. There are significant differences in voltage levels and target markets between the two.
Can it adapt to the frequent start stop requirements of railway traction?
Sure. The traction exclusive protection module can automatically adjust the protection threshold, withstand high-frequency impact loads, and the mechanical life of the circuit breaker is over 80000 times, fully adapting to the frequent starting and stopping conditions of railway traction locomotives.
How to ensure the timely supply of accessories for overseas projects?
Overseas parts warehousing covers core regions in Europe (Germany) and the Middle East (United Arab Emirates), enabling parts delivery within 48 hours. Remote areas support expedited air delivery, coupled with 24-hour bilingual technical support, to quickly respond to operational needs.
How to ensure stable operation in a strong electromagnetic interference environment?
The all metal shielded cabinet and electromagnetic filtering module provide dual protection. The internal components are made of anti-interference materials, and the wiring is optimized to reduce interference conduction. This can effectively shield high-frequency electromagnetic signals, ensuring stable equipment parameters and no misoperation.
Related Applications
European Railway Traction Distribution: Used for European 33kV railway traction substations and distribution facilities along the line, adapted to the English standard operation and maintenance system, with anti impact and anti electromagnetic interference performance to ensure stable power supply for traction locomotives, and multilingual adaptation for local operation and maintenance personnel to operate.
Large oil and gas fields in the Middle East: adapted to the 33kV voltage level of oil and gas field extraction, gathering and transmission facilities in the Middle East for power distribution. The anti salt spray design can cope with coastal and desert salt spray environments, and the traction load adaptability can meet the power supply needs of mobile equipment in oil and gas fields, ensuring stable production capacity.
Southeast Asia Cross border Industrial Park: Used for cross-border industrial parks in Southeast Asia that adopt a 33kV voltage level. It is compatible with multiple standards and can be connected to distribution systems of enterprises in different countries. The modular design adapts to the phased construction of the park, and the overseas service system ensures the smooth implementation of projects.
Power distribution for domestic railway test sections: Used for domestic 33kV railway traction system test sections, customized protection modules can adapt to load fluctuations and debugging needs of the test sections, and are linked with the railway SCADA system to achieve precise control and data acquisition of traction power supply.
