INDUSTRIAL APPLICATIONS
Industrial power distribution extends from incoming supply points and plant substations to production lines, process units, plant utilities and auxiliary systems. These distribution networks serve a wide range of plant areas and operating functions, from continuous production processes to facility expansion and electrical modernization.

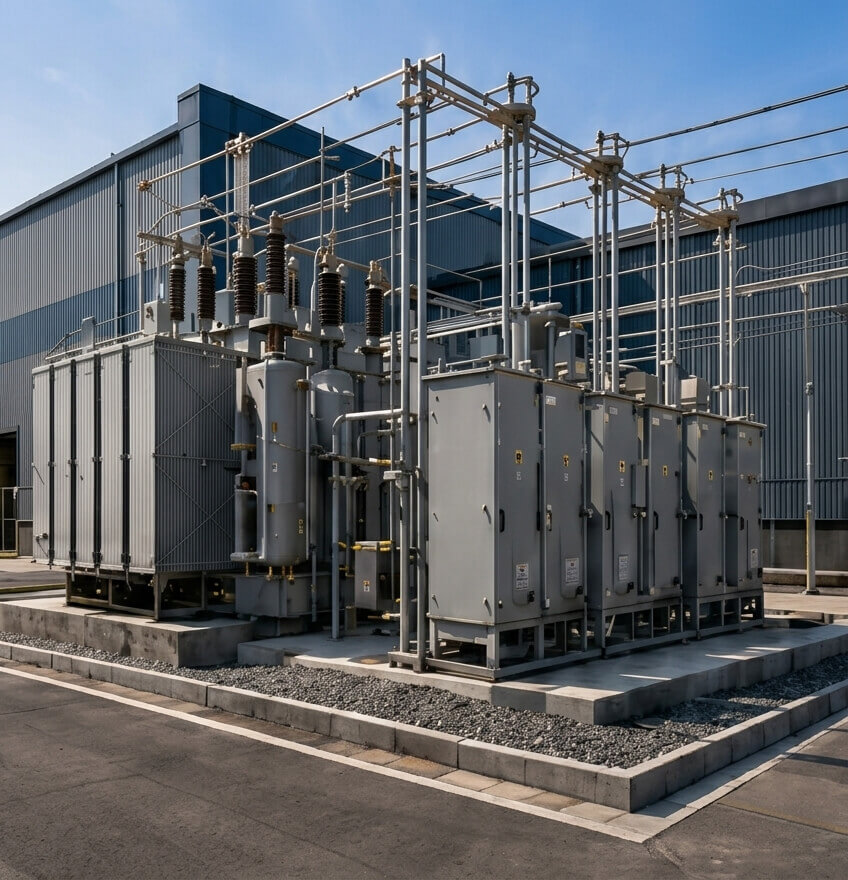

Plant substations receive and distribute electrical power to production, process, plant utility and auxiliary areas, forming key distribution nodes between incoming supply and downstream plant feeders, with voltage transformation where required.
Power distribution serves manufacturing lines, process units, motor-driven equipment and other plant loads across production areas, where operating patterns, load characteristics and distribution requirements can vary significantly.
Industrial projects may involve new production areas, additional electrical capacity, feeder extensions, replacement of aging equipment and modernization of existing plant distribution to support changing operational and expansion requirements.
RELEVANT EQUIPMENT
For voltage transformation between plant medium- and low-voltage distribution levels.
For main low-voltage distribution and major production or process loads.
For final low-voltage distribution and applicable local equipment control in industrial facilities.
PROJECT CONFIGURATION
Equipment configuration depends on the electrical system, project specifications and operating conditions.
Incoming supply voltage, plant medium- and low-voltage distribution levels, equipment rated voltage and required insulation levels influence equipment selection and configuration across different stages of the plant distribution system.
Load type, operating demand, load diversity, duty cycle and capacity requirements influence equipment ratings and distribution configuration, particularly where production loads vary significantly between operating conditions or process stages.
System fault levels, grounding arrangements and protection device requirements influence equipment short-circuit ratings, protection interfaces and coordination requirements across incoming, feeder and downstream distribution circuits.
Motor-driven loads, motor starting characteristics, process equipment characteristics and related control interfaces can affect feeder, switching, protection and distribution equipment requirements within production and process areas.
Indoor or outdoor installation, ambient temperature, dust, humidity, corrosion, altitude and enclosure protection requirements can affect insulation, enclosure selection and overall equipment configuration for industrial sites.
Maintenance access, planned plant expansion, spare feeder provisions, equipment replacement requirements and future operating needs should be considered when determining equipment arrangement and long-term serviceability.
