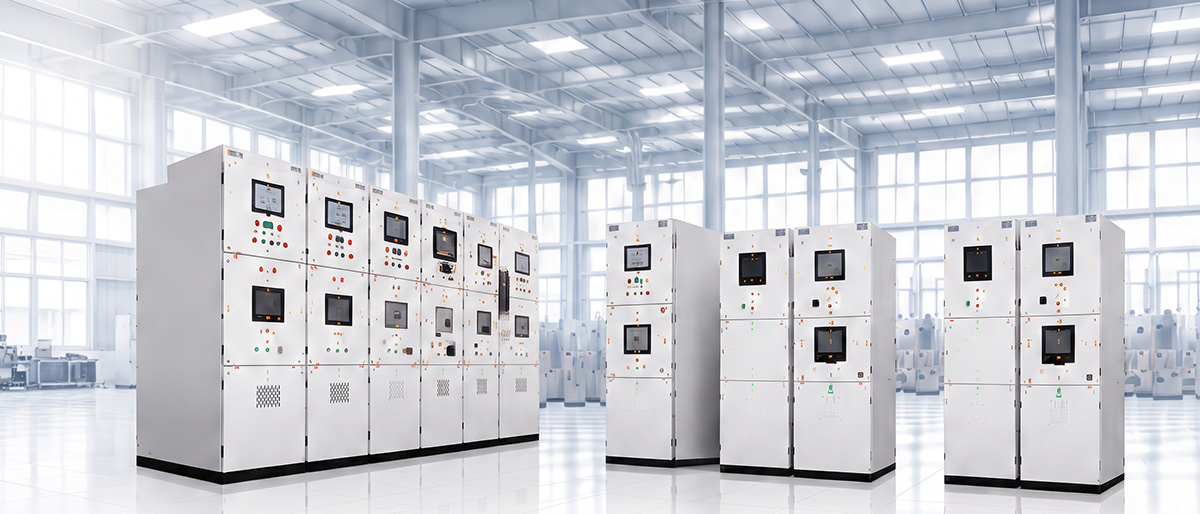

Metal-Clad Withdrawable Medium-Voltage Switchgear
Metal-clad withdrawable medium-voltage switchgear is designed for indoor primary power distribution, switching, protection and control applications in utility, industrial and infrastructure power systems.
TOONICE provides KYN28 and KYN61 series metal-clad withdrawable switchgear for different rated-voltage classes and project requirements, using withdrawable vacuum circuit breakers and compartmentalized metal-enclosed construction.
Project-based configurations are available according to system voltage, rated current, short-circuit level, feeder arrangement, protection scheme, interlocking requirements and installation conditions.

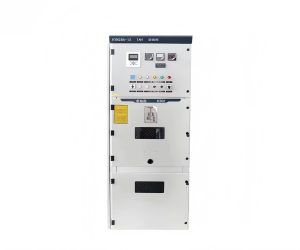

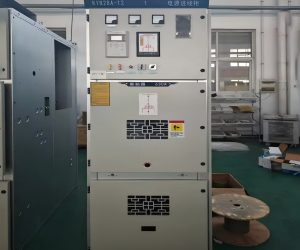

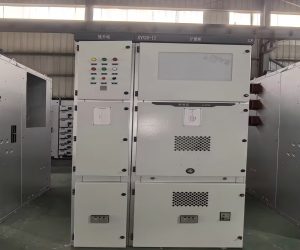

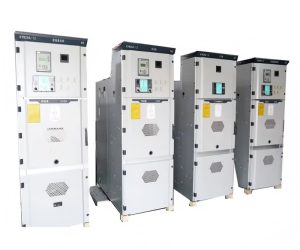

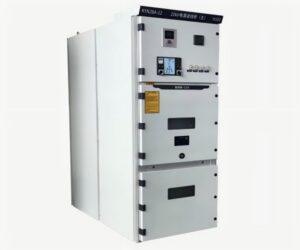

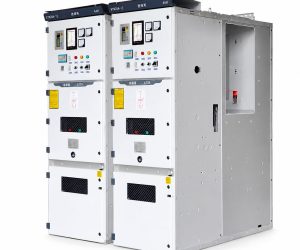

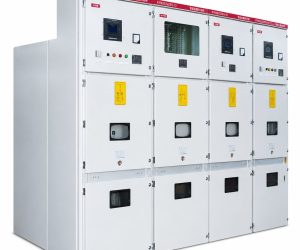

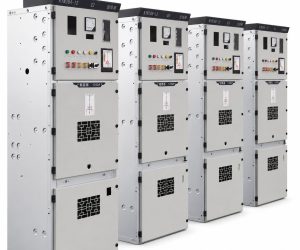

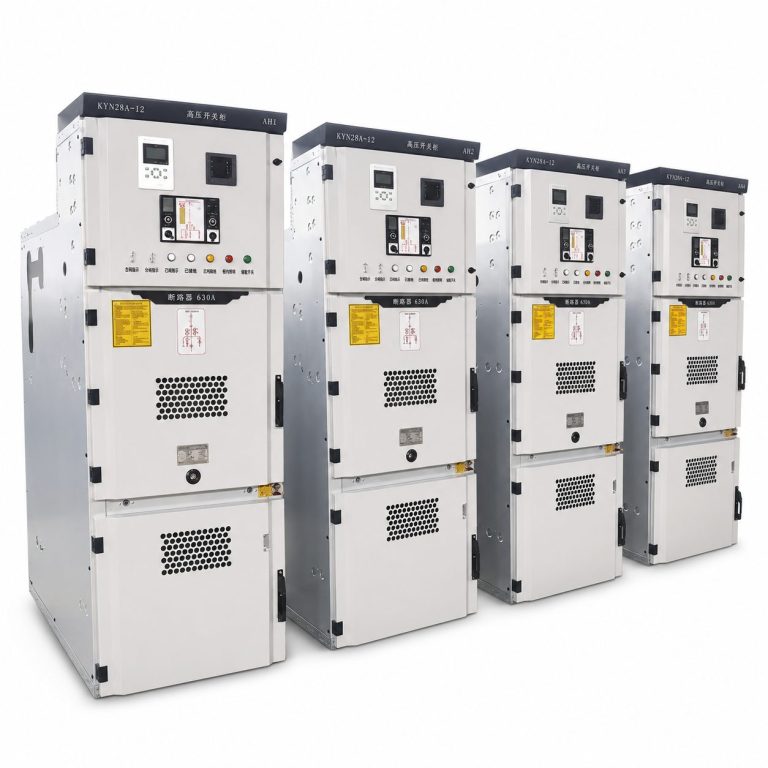

KYN28 Metal-Clad Withdrawable Medium-Voltage Switchgear
Metal-clad withdrawable medium-voltage switchgear for indoor primary power distribution applications in 12 kV, 17.5 kV and 24 kV rated-voltage classes, with withdrawable vacuum circuit breakers and project-specific protection and control configurations.
Typical Use
- Utility Distribution
- Industrial Facilities
- Infrastructure Projects
Key Information
-
Structure
Metal-Clad Withdrawable
-
Standard
IEC 62271-200 / -100
-
Configuration
Project-Based
-
Voltage Level
12 / 17.5 / 24 kV
KYN61 Metal-Clad Withdrawable Medium-Voltage Switchgear
Metal-clad withdrawable medium-voltage switchgear for indoor primary power distribution applications in the 40.5 kV rated-voltage class, using withdrawable vacuum circuit breakers for switching, protection and control.
Typical Use
- Utility Distribution
- Industrial Facilities
- Infrastructure Projects
Key Information
-
Structure
Metal-Clad Withdrawable
-
Standard
IEC 62271-200 / -100
-
Configuration
Project-Based
-
Voltage Level
40.5 kV
Documentation & Engineering Support
Documents available for project review and engineering coordination.
- Drawings
- Technical Data Sheets
- Routine Test Records
- Inspection Reports
- Certificates
Need technical information?
Access product catalogues and technical documents for product selection and project review.
Download Product CatalogueReady to Discuss Your Project?
Share your voltage level, application and project requirements.
