Medium Voltage Components
Medium-voltage components for switching, protection, isolation, measurement and control applications in power distribution systems.

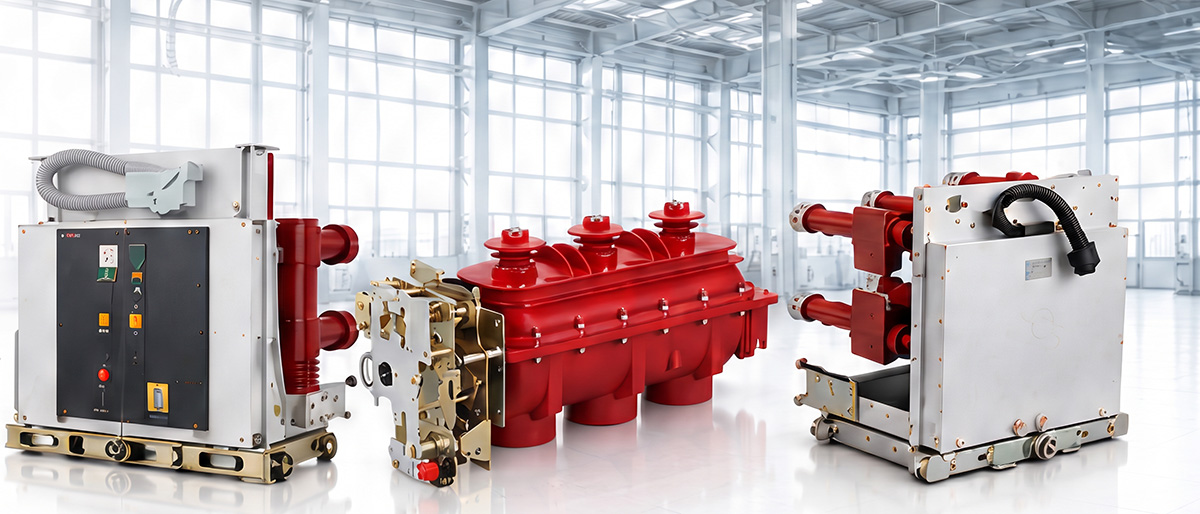

TOONICE provides vacuum circuit breakers, SF₆ load break switches and switchgear trucks for medium-voltage switchgear and distribution applications.
Component ratings, interfaces and configurations are selected according to system voltage, switchgear design and project requirements.

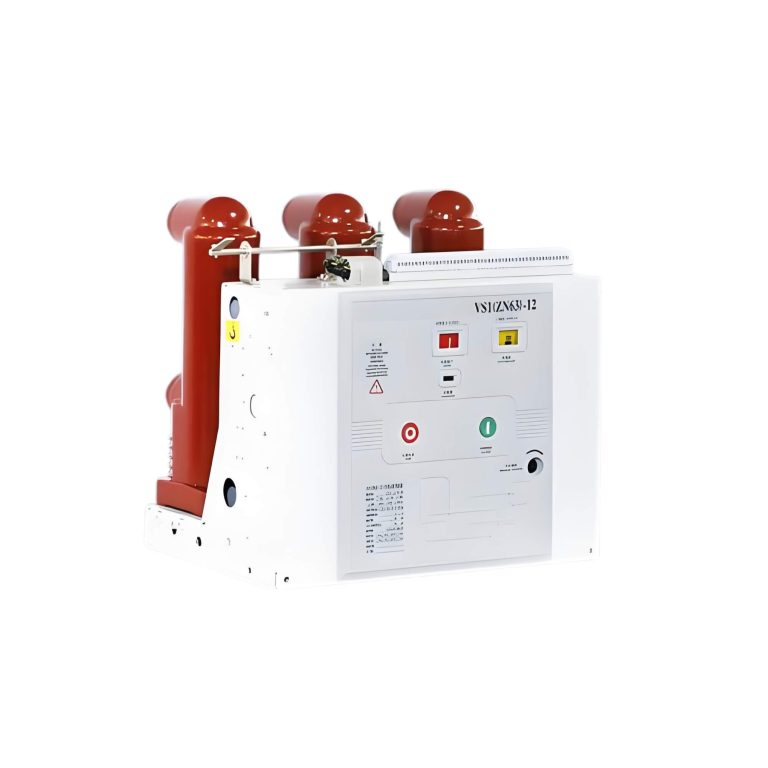

Vacuum Circuit Breakers
Indoor medium-voltage vacuum circuit breakers for switching, protection and control applications, available in fixed, withdrawable and side-mounted configurations.
Typical Use
- Utility Distribution
- Industrial Power Systems
- Medium-Voltage Switchgear
Key Information
-
Function
Switching & Protection
-
Standard
IEC 62271-100
-
Configuration
Fixed / Withdrawable / Side-Mounted
-
Voltage Level
Up to 40.5 kV

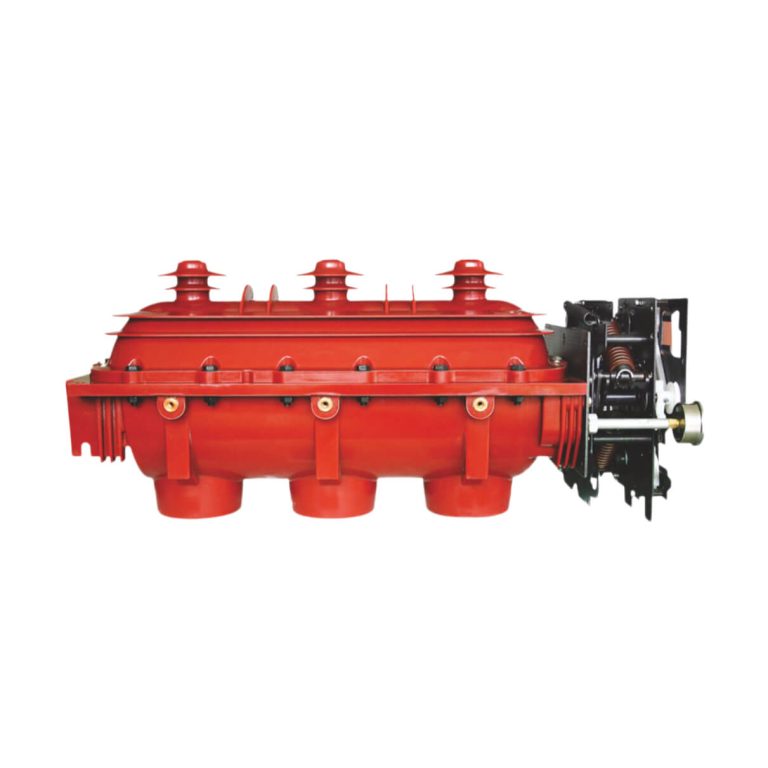

SF₆ Load Break Switches
Indoor SF₆ load break switches for load switching, isolation and earthing applications, with two-position, three-position and switch-fuse configurations.
Typical Use
- Secondary Distribution
- Transformer Protection
- Ring Networks
Key Information
-
Function
Load Switching
-
Standard
IEC 62271-103
-
Configuration
LBS / Switch-Fuse
-
Voltage Level
Up to 40.5 kV

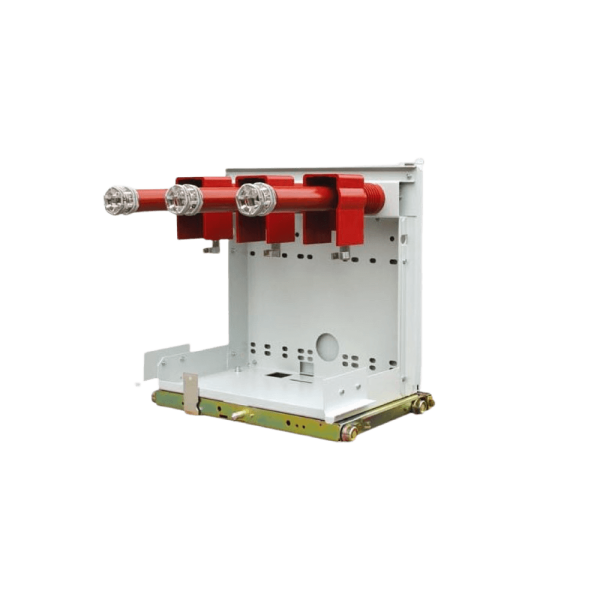

Switchgear Trucks
Withdrawable switchgear trucks for primary circuit connection, isolation, measurement and protection-related applications in medium-voltage switchgear systems.
Typical Use
- Voltage Measurement
- System Isolation
- Metering Applications
Key Information
-
Function
Withdrawable Functional Units
-
Standard
IEC 62271-200 / IEC 61869 Series
-
Configuration
VT / Isolation / Metering
-
Voltage Level
Up to 40.5 kV
Documentation & Engineering Support
Documents available for project review and engineering coordination.
- Drawings
- Technical Data Sheets
- Routine Test Records
- Inspection Reports
- Certificates
Frequently Asked Questions
What medium-voltage components does TOONICE provide?
TOONICE provides indoor medium-voltage vacuum circuit breakers, SF₆ load break switches and switchgear trucks, including voltage transformer trucks, isolation trucks and metering trucks, for medium-voltage switchgear and distribution applications.
What is the difference between vacuum circuit breakers, SF₆ load break switches and switchgear trucks?
Vacuum circuit breakers are used for switching and protection, including the interruption of short-circuit currents. SF₆ load break switches are used for load switching, isolation and earthing, and can be combined with fuses for transformer and feeder protection. Switchgear trucks are withdrawable functional units for voltage measurement, isolation and metering in withdrawable switchgear.
What voltage levels are available for TOONICE medium voltage components?
TOONICE medium voltage components are available for applications up to 40.5 kV. The available voltage classes depend on the product series and configuration.
Can TOONICE provide project-specific component configurations?
Yes. Ratings, interfaces and configurations can be selected according to system voltage, rated current, switchgear design, installation arrangement and project requirements.
What technical documents are available for project review?
Available documents may include drawings, technical data sheets, routine test records, inspection reports and certificates according to project requirements.
Need technical information?
Access product catalogues and technical documents for product selection and project review.
Download Product CatalogueReady to Discuss Your Project?
Share your voltage level, application and project requirements.
