GGD Low Voltage Switchgear

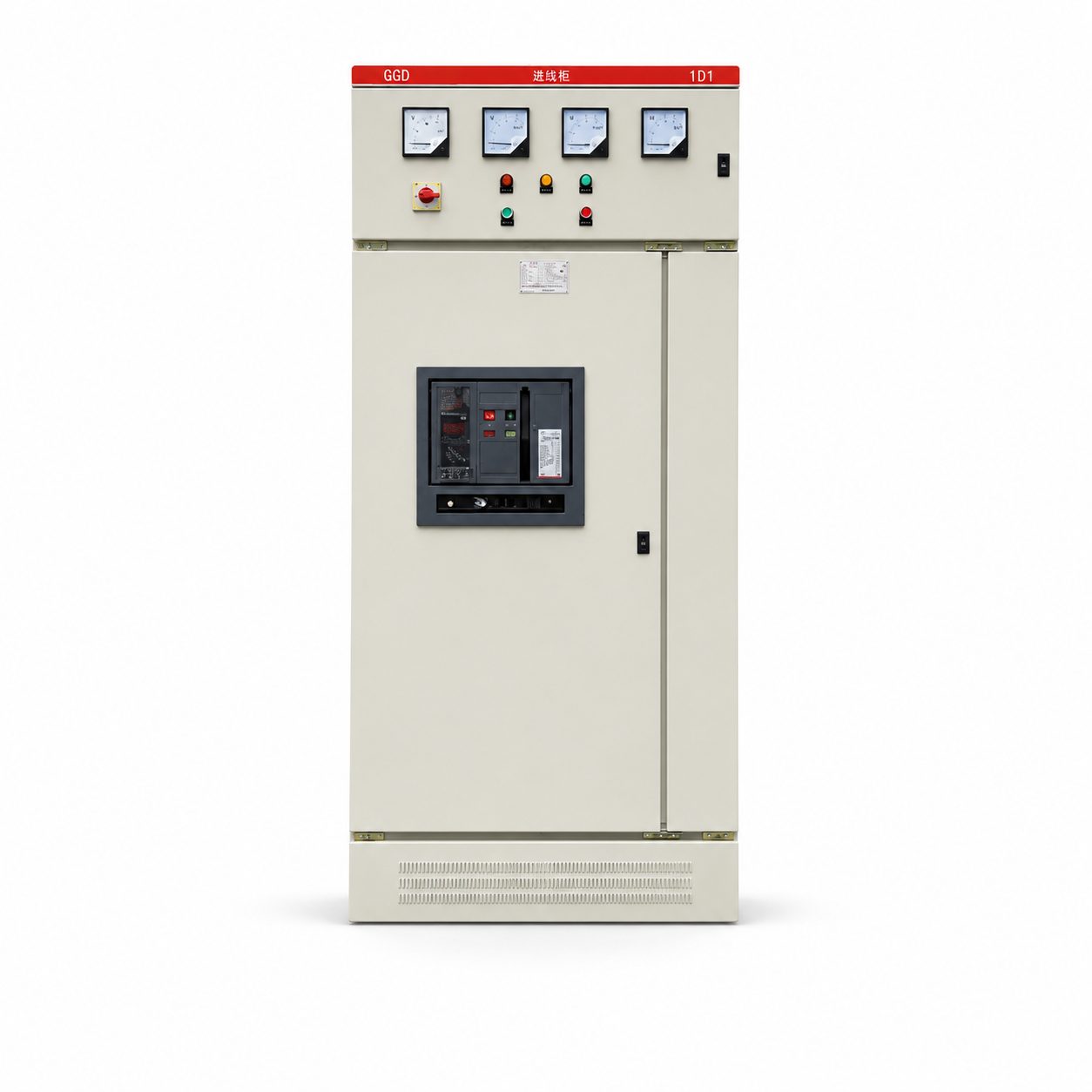

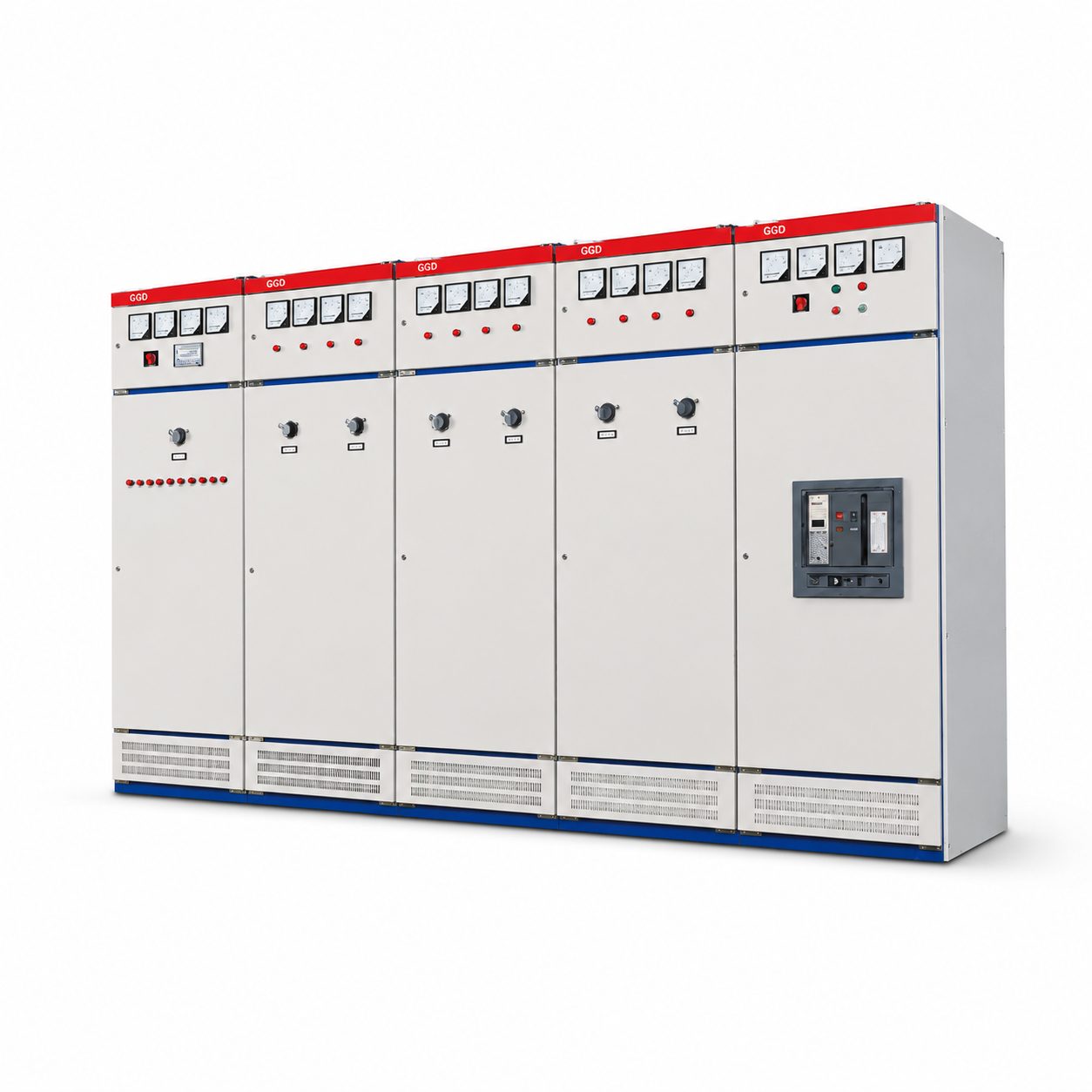

TOONICE’s the full name of GGD low-voltage switchgear is GGD-type AC Low-Voltage Fixed Switchgear. It is one of the most widely used low-voltage power distribution equipment at home and abroad. Its core features include simple structure, cost-effectiveness, and high reliability, making it especially suitable for scenarios with low requirements for power distribution flexibility but limited budgets. Among its name, the first “G” stands for “low-voltage power distribution cabinet”, the second “G” indicates “fixed installation”, and “D” refers to “power application”.

I. Core Technical Features and Structural Design

1. Fixed Installation and Non-modular Framework:

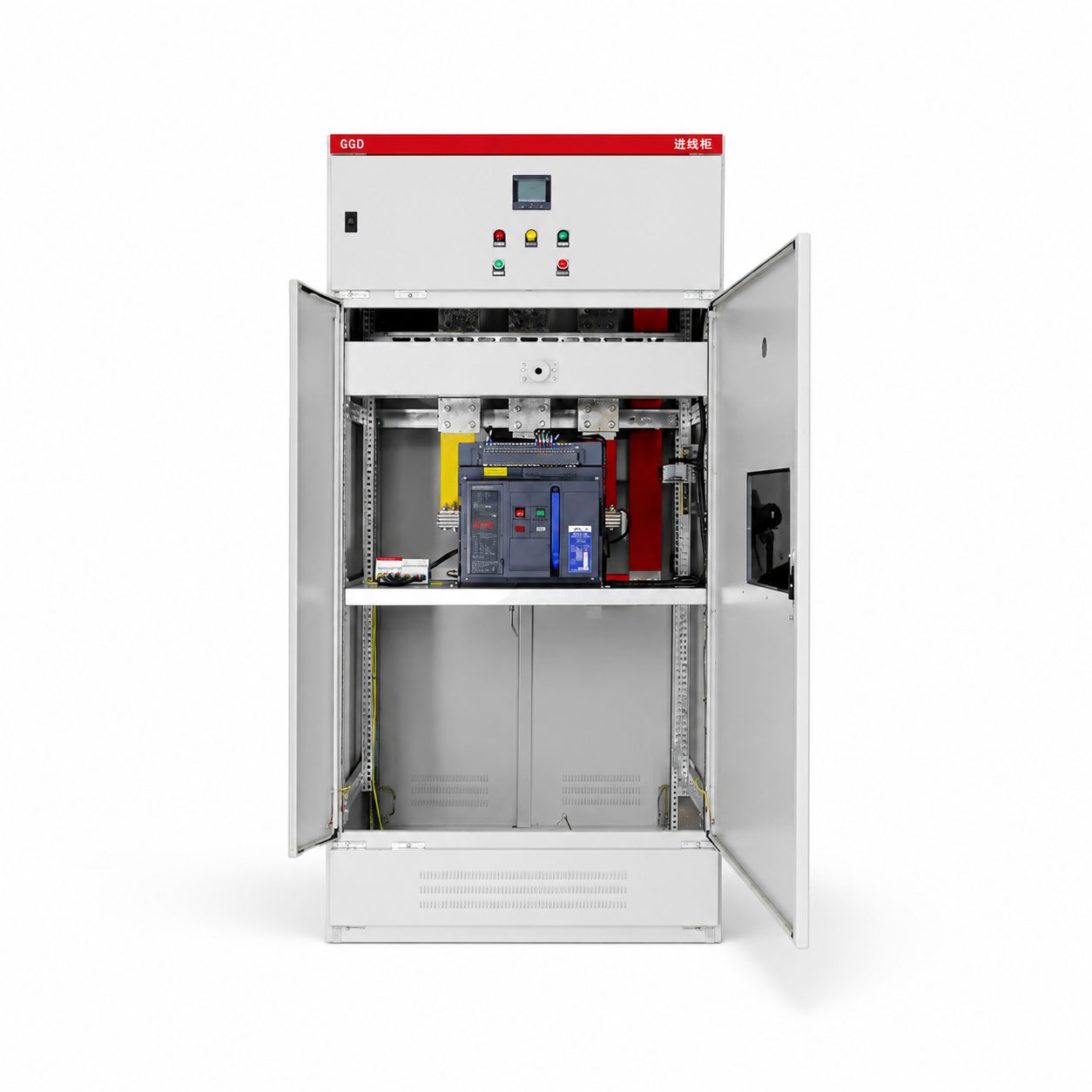

The cabinet body is welded and assembled with 8MF cold-formed steel. Internal electrical components (such as circuit breakers, contactors) are directly fixed on the cabinet body frame by bolts. The wiring method is fixed, and there is no drawer plug-in design. The cabinet body is provided with mounting holes at a 20mm modulus, which has strong universality, but it cannot flexibly expand circuits like GCS/MNS cabinets.

2. Heat Dissipation and Protection Design:

Heat dissipation slots are provided at the upper and lower ends of the cabinet body, which form air ducts by natural convection to effectively reduce internal temperature rise. The standard protection class is IP30, which can prevent the intrusion of solid foreign objects larger than 2.5mm. Users can also customize IP20 – IP40 protection according to environmental requirements (for example, IP40 is selected for places with more dust).

3. Electrical Performance Parameters

① Rated voltage: 380V (some models support 400V); rated current range: 400 – 3150A;

② Short-circuit withstand capacity: Divided into three models (GGD1 – 15kA, GGD2 – 30kA, GGD3 – 50kA, with 1-second short-time withstand), suitable for power distribution systems with different short-circuit capacities;

③ Busbar system: The main busbar is supported by high-strength DMC/SMC insulating materials, with a maximum current-carrying capacity of up to 3150A, which can meet the power distribution needs of small and medium-sized factories.

II. Typical Application Scenarios

Due to its economy and stability, GGD cabinets are widely used in the following fields:

1.Industrial Field:

① Power distribution in small and medium-sized factories (such as power control of fans, water pumps, and ordinary machine tools);

② Workshops with low requirements for power supply continuity, such as non-core production lines in traditional manufacturing industries.

2.Commercial and Civil Buildings:

① Low-voltage distribution rooms in small shopping malls, schools, and communities, used for power distribution of basic equipment such as lighting and air conditioning;

② Reconstruction projects of old residential communities, which have become the mainstream choice due to low cost and strong compatibility.

3.Infrastructure:

① Places with low requirements for maintenance convenience, such as rural power grids and small pumping stations;

② Temporary construction power distribution boxes, which are widely used due to their simple structure and easy portability.

III. Key Points for Type Selection and Installation

1.Load Matching:

① Select the circuit breaker specification according to the rated current of the circuit. For example, a CM1-225M molded case circuit breaker can be selected for a 200A circuit.

② For places with large short-circuit capacity (such as near transformers), the GGD3 type (with a breaking capacity of 50kA) should be preferred.

2.Environmental Adaptability:

For dusty environments, it is recommended to customize IP40 protection. In coastal areas, the cabinet can be required to undergo galvanizing treatment before plastic spraying to improve corrosion resistance.

3.Infrastructure:

If there is a demand for capacity increase in the future, spare cabinet positions can be reserved, but it is impossible to add circuits directly in the original cabinet like drawer cabinets.

4.Installation Specifications:

① The cabinet must be reliably grounded, and the grounding resistance shall be≤4Ω.

② For busbar connections, conductive paste should be applied and tightened with a torque wrench to avoid overheating caused by excessive contact resistance.
