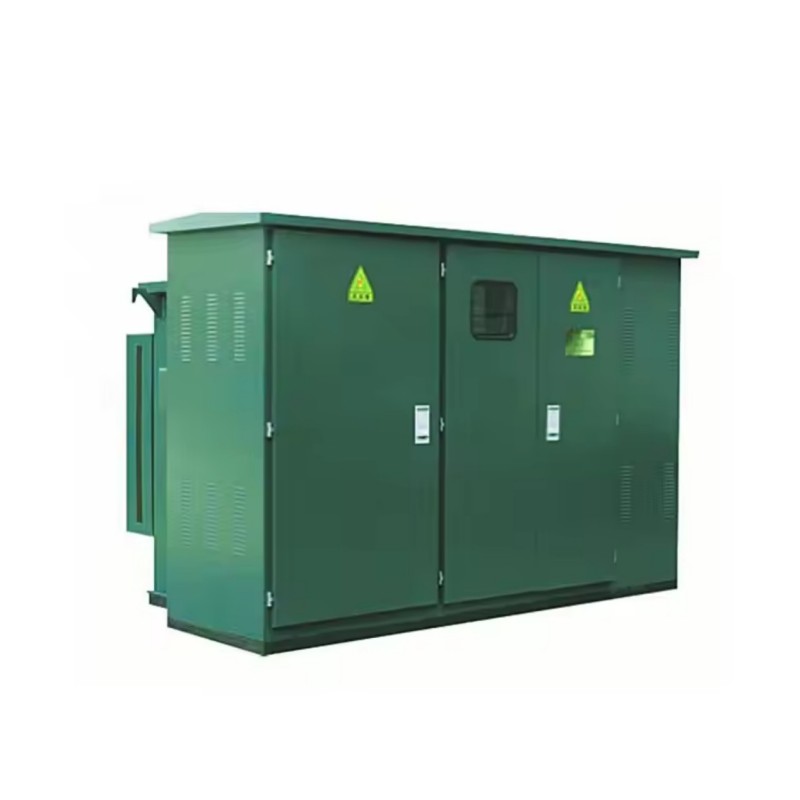

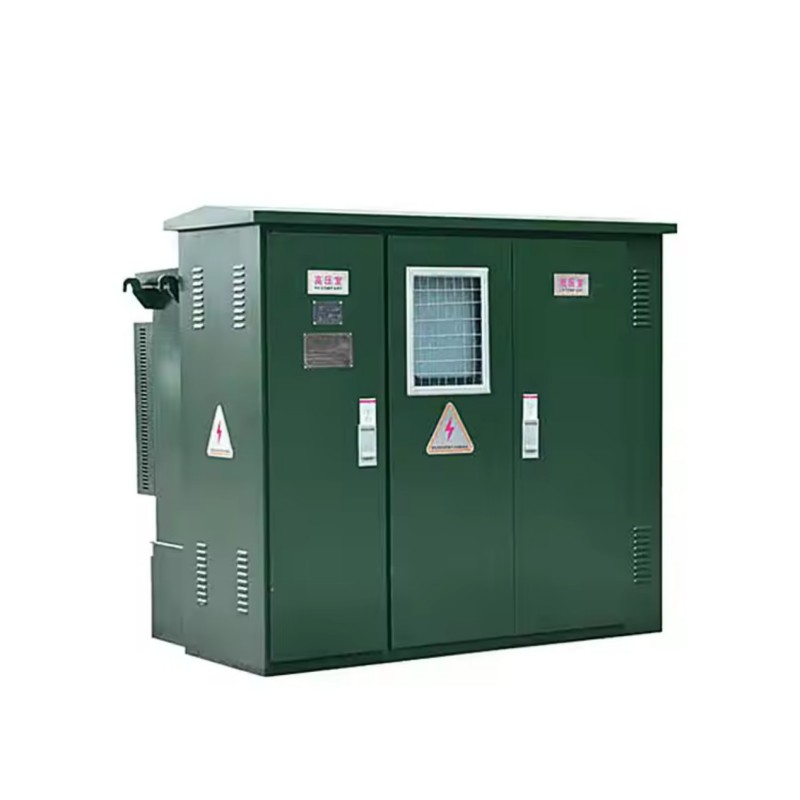

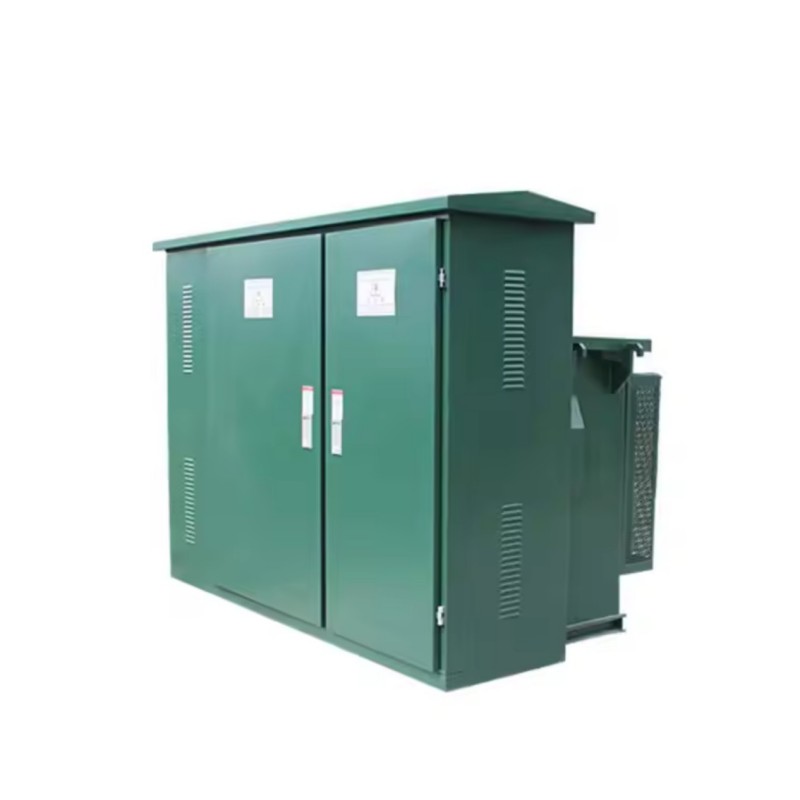

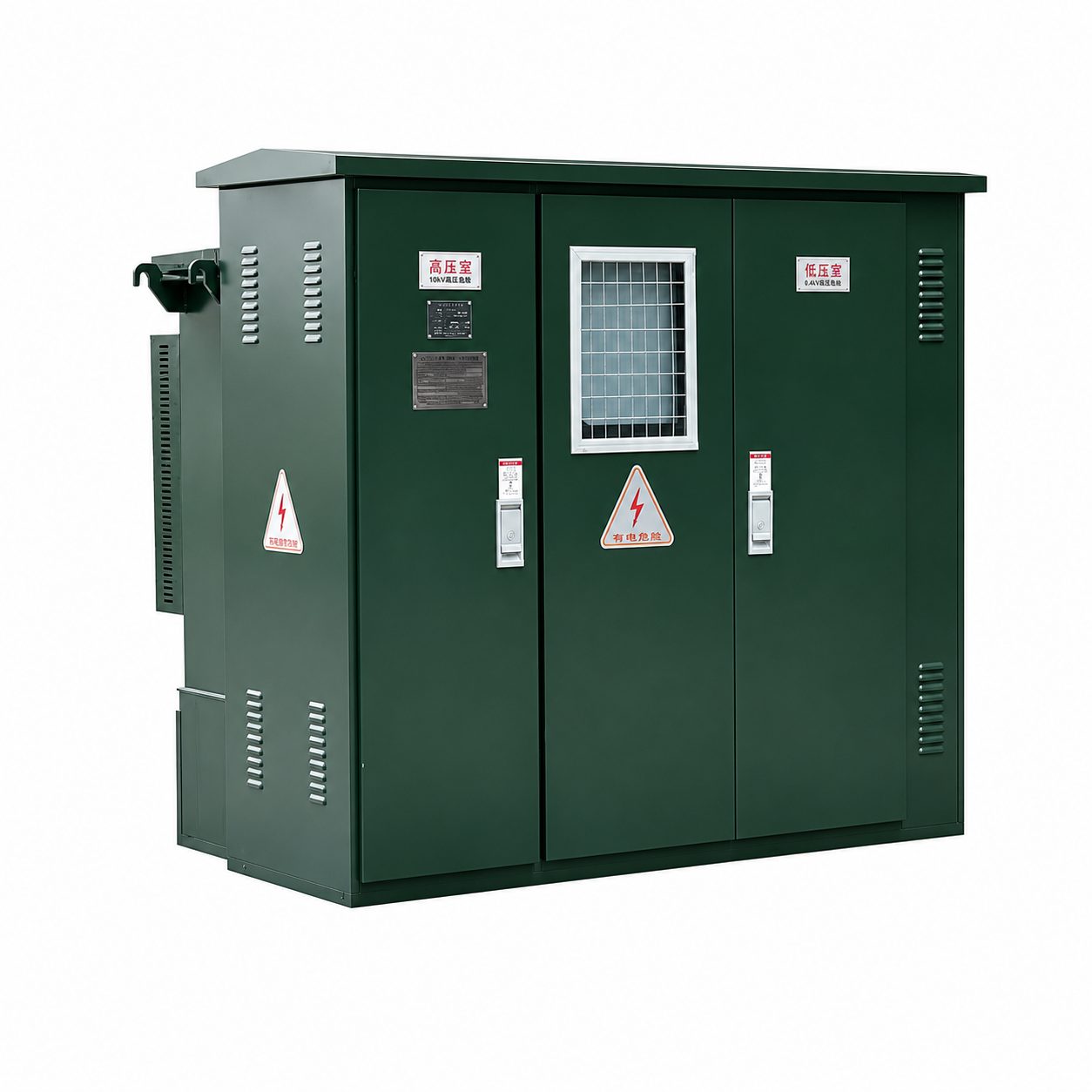

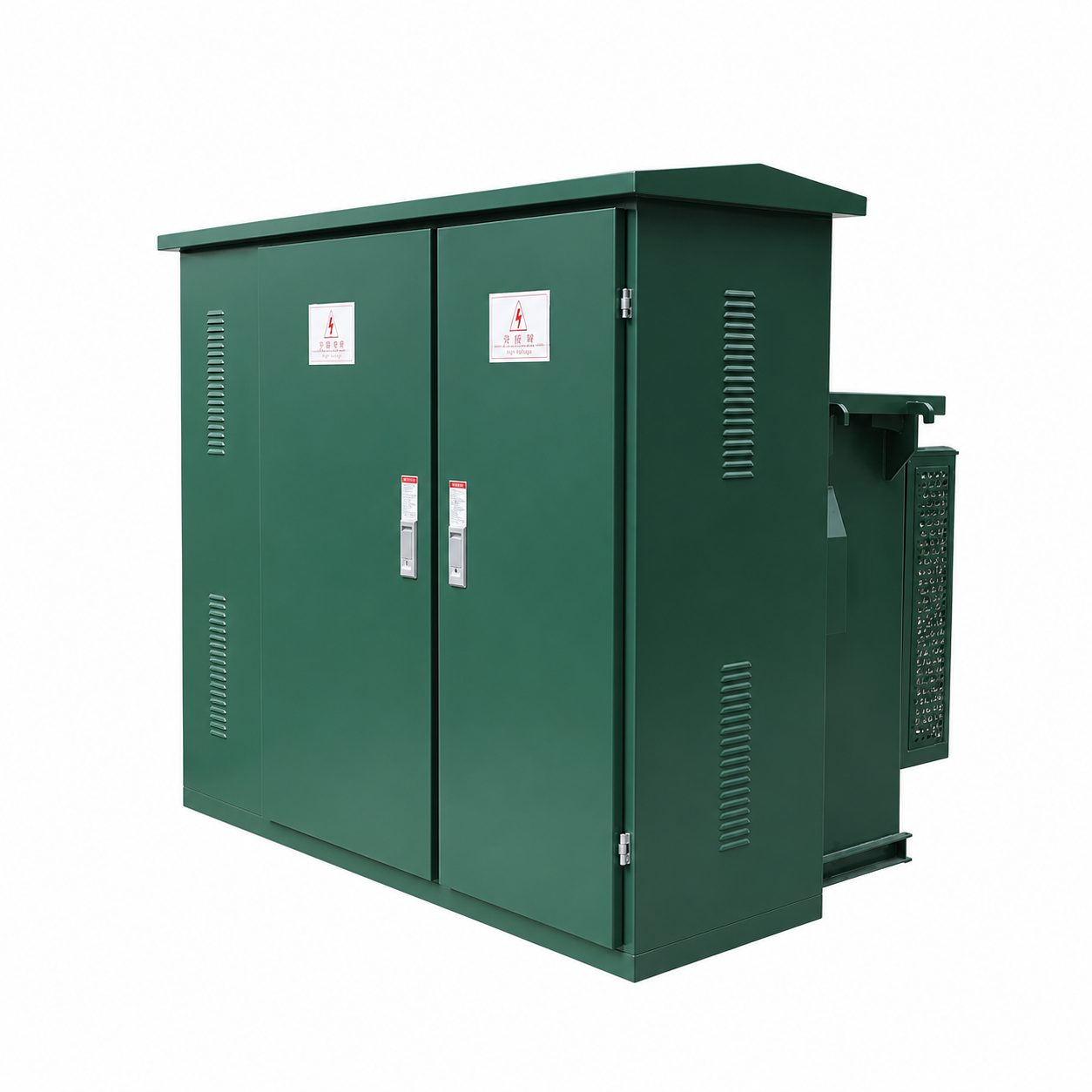

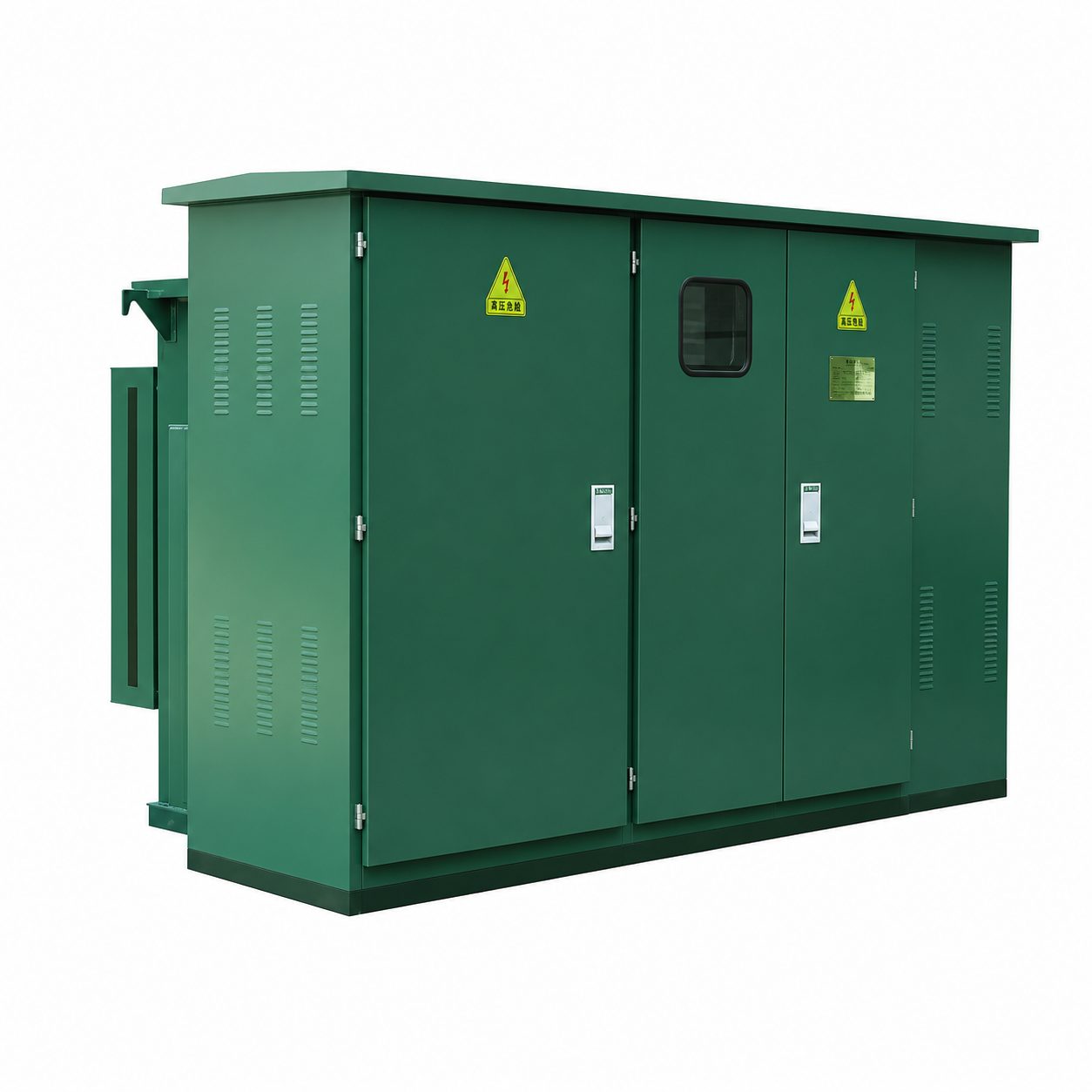

ZGS13 America Type Substation
ZGS13 America Type Substation
American style box transformer (also known as American prefabricated substation) is a compact distribution equipment that integrates core components such as high voltage switchgear, distribution transformers, and low voltage distribution devices. It adopts a production mode of factory prefabrication and overall hoisting, without the need for extensive on-site civil construction. Its structural design conforms to American distribution standards, taking into account weather resistance, safety, and convenient operation and maintenance.
It is core compatible with mainstream voltage levels such as 10kV/0.4kV and 20kV/0.4kV, and can customize capacity and configuration according to user needs. It is widely used in urban and rural distribution, industrial plants, and other scenarios, and is a key equipment for achieving efficient power transmission and distributed power supply. The production process strictly follows international standards such as IEC and ANSI, as well as domestic power equipment manufacturing specifications. A full process quality control system is established from component selection, welding and assembly to finished product testing to ensure that the products meet the strict requirements of power grid operation.
Features
1. Integrated design, efficient and convenient installation:
Using modular integration technology, transformers, high and low voltage switches, protective devices and other components are pre installed, wired and debugged in the factory. After the finished product is transported to the site, it can be put into use with simple fixing and wiring, greatly shortening the on-site construction period. Compared with traditional civil engineering substations, the installation efficiency is increased by more than 60%, reducing on-site construction costs and safety risks.
2. Compact structure design, saving space:
Optimize internal layout, use common box or split box to plan component positions reasonably, reduce the volume by 30% -40% compared to European box transformers of the same capacity, and can be directly installed in narrow areas such as outdoor green belts, roadside, and factory corners, without the need for separate planning of large-scale substation land, especially suitable for space limited scenarios such as urban power grid renovation and urban village power distribution.
3. All condition weather resistance and adaptability to diverse environments:
The shell is made of high-quality cold-rolled steel plate that has undergone anti-corrosion treatment (spray coating, galvanizing optional), with wind resistance, rain resistance, dust resistance, and corrosion resistance. It can operate stably in extreme temperature environments ranging from -40 ℃ to+60 ℃, high humidity, and high dust conditions. At the same time, it is equipped with fire prevention and anti condensation devices to ensure reliable power supply for the equipment 24/7.
4. Low loss and energy-saving, controllable operation and maintenance costs:
The core transformer adopts high magnetic conductivity silicon steel sheets and optimized winding design, reducing no-load and load losses by 15% -20% compared to traditional products. Long term operation can significantly save energy consumption; The equipment structure design takes into account the convenience of operation and maintenance, with reserved maintenance channels and observation windows. Key components can be quickly disassembled and replaced, greatly reducing daily inspection and maintenance workload and lowering later operation and maintenance costs.
5. Customized adaptation with strong power supply stability:
High and low voltage switch configurations, protection functions, heat dissipation methods, and other core parameters can be customized according to the user’s voltage level, power supply capacity, load characteristics, and on-site working conditions to meet the power supply needs of different scenarios; Equipped with comprehensive overcurrent, overvoltage, short circuit, and leakage protection devices, it can quickly respond to faults and cut off power, effectively protecting equipment and electrical loads, and improving power supply reliability.
Our company’s American style box transformer production covers the entire industry chain of research and development, component procurement, welding and assembly, debugging and testing, packaging and transportation. We have a professional R&D team and modern production workshops, equipped with advanced production equipment such as CNC cutting, automatic welding, vacuum drying, etc., to ensure product manufacturing accuracy and stability.
The product has been certified by the National Electric Power Equipment Quality Supervision and Inspection Center and obtained ISO9001 Quality Management System, ISO14001 Environmental Management System, and OHSAS18001 Occupational Health and Safety Management System certifications.
We can provide one-stop services from product design, production and manufacturing to on-site installation, debugging and operation, while also supporting value-added services such as equipment upgrades and maintenance in the later stage, to meet the full lifecycle electricity needs of users. If you need to know the specific voltage level, capacity, product parameters, quotation, and delivery cycle, you can contact customer service personnel for exclusive solutions.
Let’s Get Started
Providing you with the most trusted energy solutions in an unpredictable world.
Contact UsRequest an Insurance Quote
Specification
| Item | Unit | Parameter |
| Rated Voltage | kV | 10/0.4 (High Voltage / Low Voltage) |
| Maximum Operating Voltage | kV | 12 (High Voltage Side) |
| Rated Frequency | Hz | 50 |
| Rated Capacity | kVA | 50 – 800 |
| Power Frequency Withstand Voltage for 1 Minute | kV | 38 |
| Lightning Impulse Voltage | kV | 95 |
| Cooling Method | – | Oil-immersed Self-cooling |
| Breaking Current of High-voltage Backup Fuse | kA | 80 |
| Breaking Current of Plug-in Fuse | kA | 31.5 |
| Ambient Temperature | ℃ | -35~+40 |
| Allowable Temperature Rise of Coil | ℃ | 65 |
| No-load Tap-changing | – | ±5% or 2×±2.5% |
| Noise Level | dB | 50 |
| Protection Class | – | IP43 |
Download
Related Products
FAQs
What is the core difference between American and European box transformers?
The core difference lies in the structural design and integration method. The American style box transformer integrates the transformer and high and low voltage switches into the same enclosure, with a more compact structure, smaller footprint, faster installation speed, and suitable for outdoor temporary power supply and space limited scenarios; The European style box type transformer adopts a split box design, with transformers and high and low voltage cabinets independently set up, providing better heat dissipation performance and larger maintenance space, suitable for high-capacity, long-term fixed power supply scenarios. There are also differences in losses, prices, and maintenance difficulties between the two, and the selection can be based on the needs of the scenario.
What is the typical service life of an American box transformer? What routine maintenance is needed in daily life?
Under normal use, the service life of American box transformers can reach 20-25 years, depending on the quality and maintenance of the components. Daily routine maintenance includes: monthly inspection of the casing for damage and corrosion, checking for loose and overheating high and low voltage wiring terminals; Clean the dust inside the equipment and check the operation status of the heat dissipation device every quarter; Perform insulation performance testing, protective device calibration, and replace aging seals annually to ensure stable operation of the equipment.
Does the American style transformer support grid connected operation? Can it adapt to new energy scenarios such as distributed photovoltaics and wind power?
Supports grid connected operation. The product has completed grid connected debugging before leaving the factory and is equipped with grid connected protection devices that meet grid standards. It can be directly connected to the national grid or internal enterprise grid. At the same time, it can adapt to distributed photovoltaic and wind power scenarios, optimize grid connection interfaces, protection logic, and energy storage adaptation functions through customized design, solve the fluctuation problem of new energy generation, and ensure the quality of power supply and equipment safety after grid connection.
What are the precautions for transportation and installation of American style box transformers?
Special lifting equipment should be used during transportation to avoid tilting and collision, prevent internal components from shifting or being damaged, and take measures to prevent rain and shock; Before installation, it is necessary to clean the site to ensure that the ground is flat and the bearing capacity meets the weight requirements of the equipment, and to reserve sufficient space for maintenance and operation; During installation, strictly follow the wiring diagram and ensure proper grounding. After installation, perform no-load and load debugging, and test all parameters to ensure compliance before putting it into use.
How long does the production cycle take for American box transformers with different voltage levels?
The production cycle needs to be determined based on voltage level, capacity, and customized requirements. Conventional 10kV/0.4kV, 20kV/0.4kV voltage levels, standard configuration American style box transformers, with a production cycle of 15-25 working days; If there are requirements for special capacity, customized protection functions, special shell treatment, etc., the production cycle will be correspondingly extended to 30-45 working days, which can be determined through negotiation with the order requirements and production schedule.
Related Applications
Urban and rural distribution network renovation project: adapted to the upgrading needs of urban old residential areas, urban villages, and rural areas’ distribution networks. Due to its small size and convenient installation, it can quickly replace traditional civil substations, solve problems such as insufficient power supply capacity, high line losses, and difficult land occupation in urban and rural distribution networks, improve regional power supply reliability and stability, and meet the daily electricity needs of residents and new energy vehicle charging and other new electricity demands.
Power supply for industrial plants and industrial parks: widely used in manufacturing plants, chemical parks, science and technology parks, etc., it can provide stable power supply for production lines, office areas, and auxiliary facilities. In response to the characteristics of heavy loads and high demand for continuous power supply in industrial scenarios, customized low loss transformers and complete protection devices can effectively cope with voltage fluctuations caused by the start and stop of industrial equipment, ensuring smooth production. At the same time, the compact structure can adapt to the limited land space in the factory area.
Municipal engineering and temporary power supply scenarios: Suitable for temporary power supply needs such as road construction, bridge construction, and urban rail transit supporting projects. It can quickly build a power supply system to provide power support for construction machinery, temporary office areas, and lighting facilities. After the completion of the project, it can be dismantled and relocated to other projects for reuse, with both flexibility and economy; At the same time, it can be used for emergency power supply for large-scale events, exhibitions and other temporary activities, ensuring the smooth implementation of activities.
New energy generation supporting projects: As on-site power transformation and distribution equipment for distributed photovoltaic and wind power projects, it can convert the electricity generated by new energy generation into voltage levels that meet grid standards, achieving on-site consumption or grid connected transmission. In response to the volatility of new energy generation, optimize equipment control logic and protection functions, enhance the stability and grid compatibility of new energy generation systems, and assist in the efficient implementation of new energy projects.
Power supply for commercial complexes and residential areas: Suitable for large shopping malls, supermarkets, office buildings, high-end residential areas and other scenarios, providing reliable power supply for commercial operations and residents’ lives. Multiple circuit power supply configurations can be customized according to the electricity load characteristics of the scene to meet the electricity needs of different areas (such as shopping malls, office buildings, residential areas). At the same time, the compact structural design can be hidden in areas such as green belts and underground garages, without affecting the overall aesthetics and functional use of the site.
