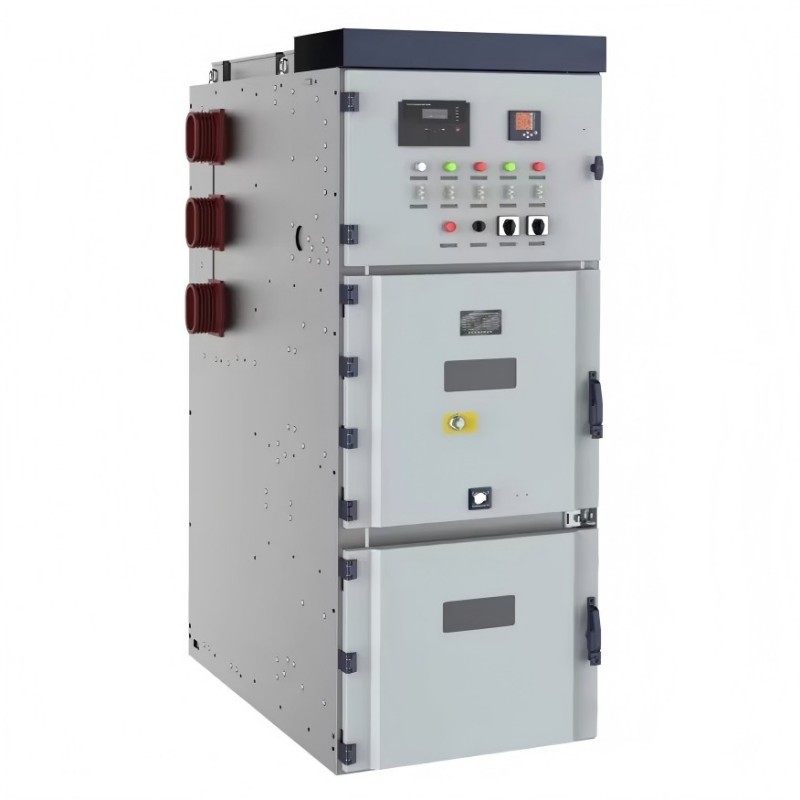

KYN28-35 Indoor Metal – Clad Withdrawable Switchgear
35kV indoor metal armored movable switchgear is the core mainstream equipment of domestic ultra-high voltage distribution networks, which complies with GB/T 3906-2020 and DL/T 404-2018 standards. It is widely used in high-end scenarios such as urban backbone distribution networks, large substations, and super large industrial enterprises. The equipment adopts an ultra-high voltage optimized armor structure, integrates composite insulation, intelligent error prevention, and efficient heat dissipation technology, and has the characteristics of excellent rated parameters, ultimate safety performance, and strong grid adaptability. It can achieve efficient distribution, intelligent regulation, and rapid fault isolation of 35kV level electrical energy, and is a benchmark equipment for ultra-high voltage distribution in China.
Features
1. Grid level adaptation, top-notch grid connection performance:
fully compliant with domestic 35kV distribution network standards, supporting seamless integration with ultra-high voltage substations and urban backbone networks, with voltage synchronous regulation and reactive power coordinated compensation functions, accurately responding to grid fluctuations, ensuring grid stability and power quality.
2. Composite insulation technology, volume efficiency optimization:
Adopting solid insulation+vacuum insulation composite technology, the insulation distance between phases and relative to ground is reduced by 30% compared to traditional air insulation, greatly reducing the cabinet volume and saving distribution room space while improving insulation performance.
3. Intelligent anti misoperation closed-loop, safe and controllable operation and maintenance:
Integrated with mechanical interlocking, electrical interlocking and intelligent anti misoperation system, it can identify the intention of misoperation and actively block it. Combined with a remote monitoring platform, it can achieve operation record traceability and fault alarm push, eliminating high-voltage operation risks from the source.
4. Low consumption and energy-saving upgrade, in line with dual carbon requirements:
The core components are selected with ultra-low loss vacuum circuit breakers and transformers, which reduce the overall no-load loss by 22% and load loss by 16% compared to conventional products. The optimized heat dissipation structure reduces energy consumption and can be included in the national energy-saving project procurement list.
5. Standardized adaptation and convenient upgrading:
Following the standard size of 35kV distribution equipment in China, standardized wiring interfaces are reserved, which can directly replace old 35kV switchgear without the need to renovate the foundation and distribution circuit of the distribution room, adapting to the upgrading and renovation needs of existing projects.
The product has a rated current of 1600A-4000A, a short-circuit breaking capacity of 63kA-100kA, and a rated short-time withstand current of 63kA-80kA (3s); Support full vacuum circuit breaker configuration, optional permanent magnet operating mechanism; The default protection level is IP54, which can be upgraded to IP65. Coastal areas can customize a salt spray enhanced version; The intelligent module supports IEC 61850 and DL/T 634.5.1-2002 protocols, and can be connected to the distribution automation systems of State Grid and Southern Power Grid, providing a complete set of power grid project access certification.
