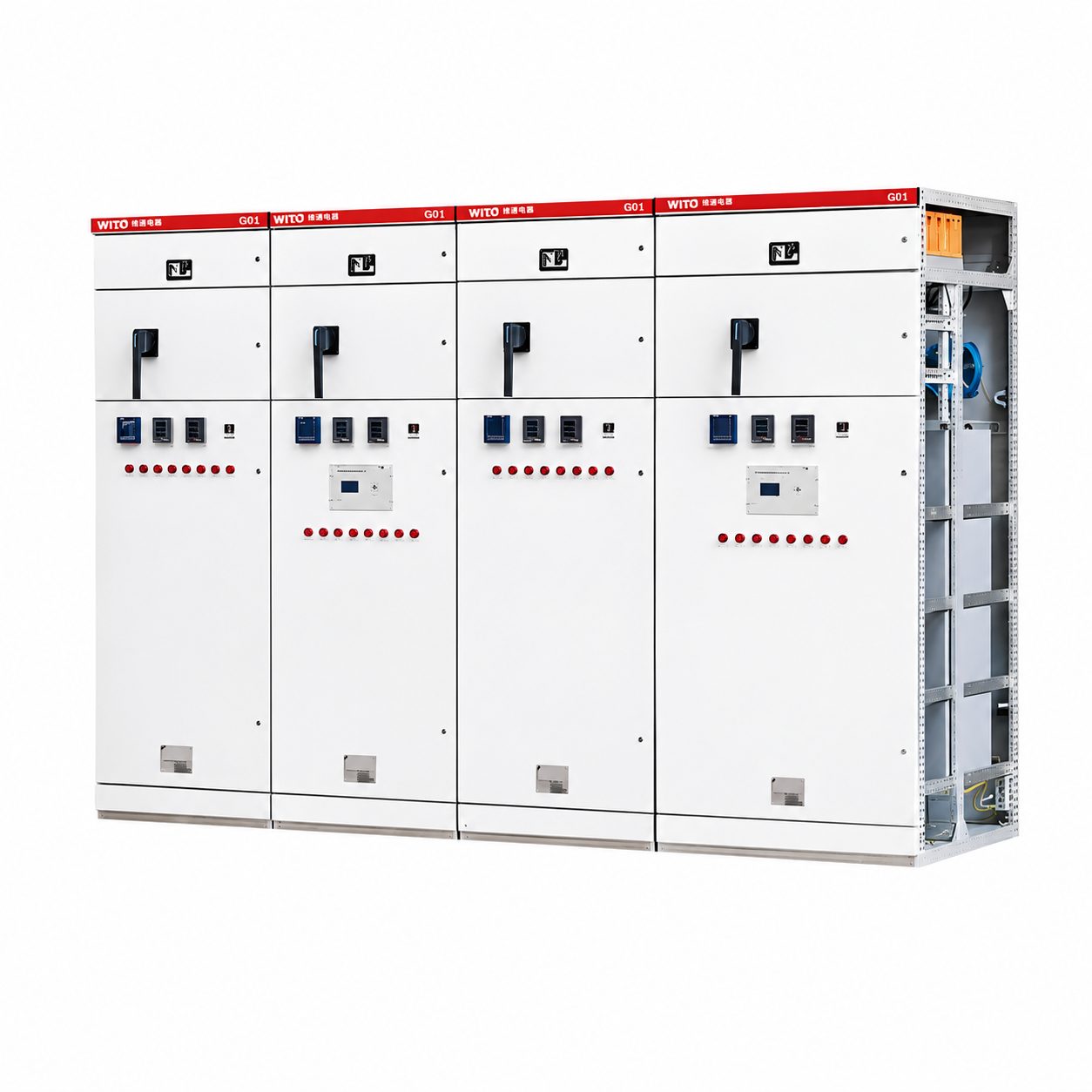

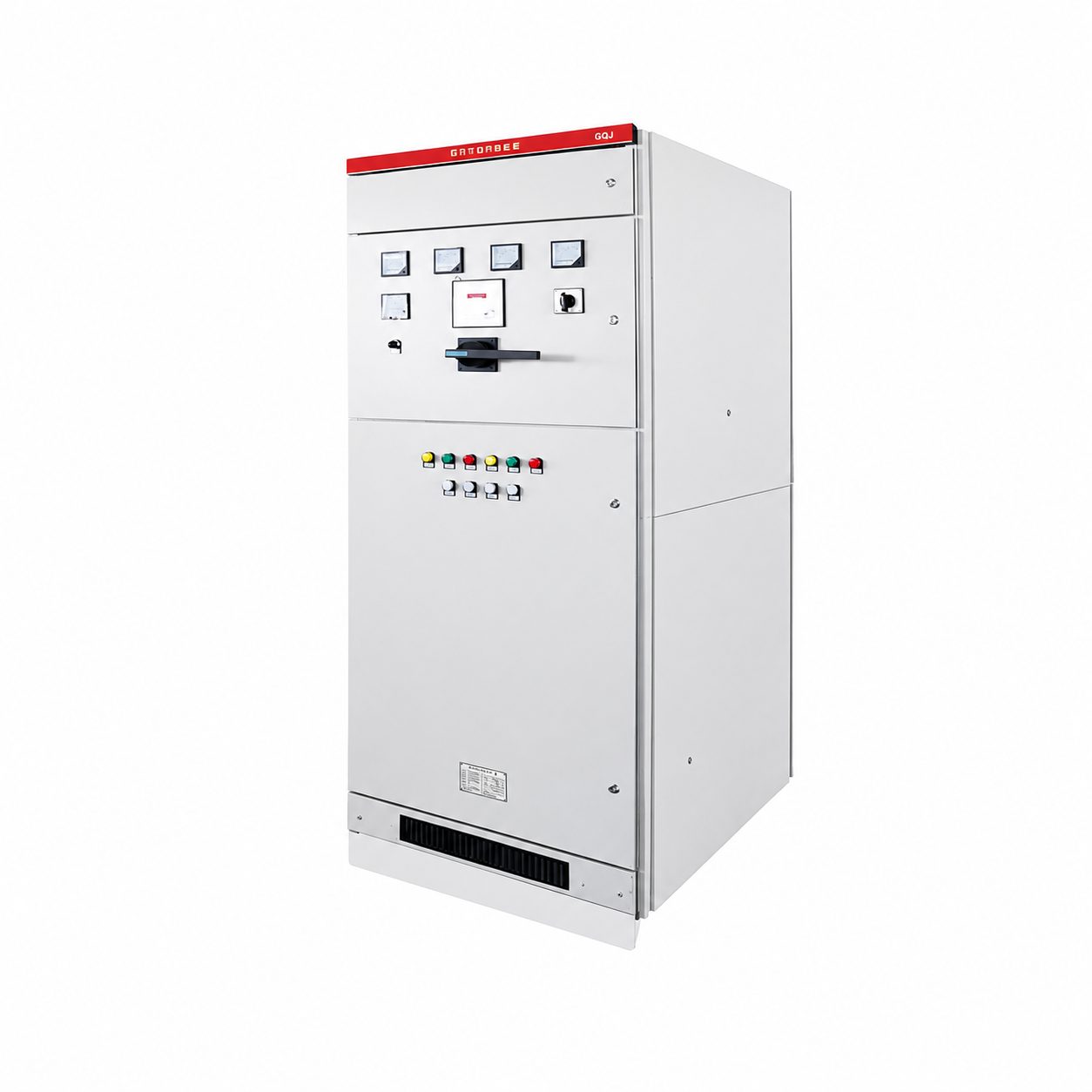

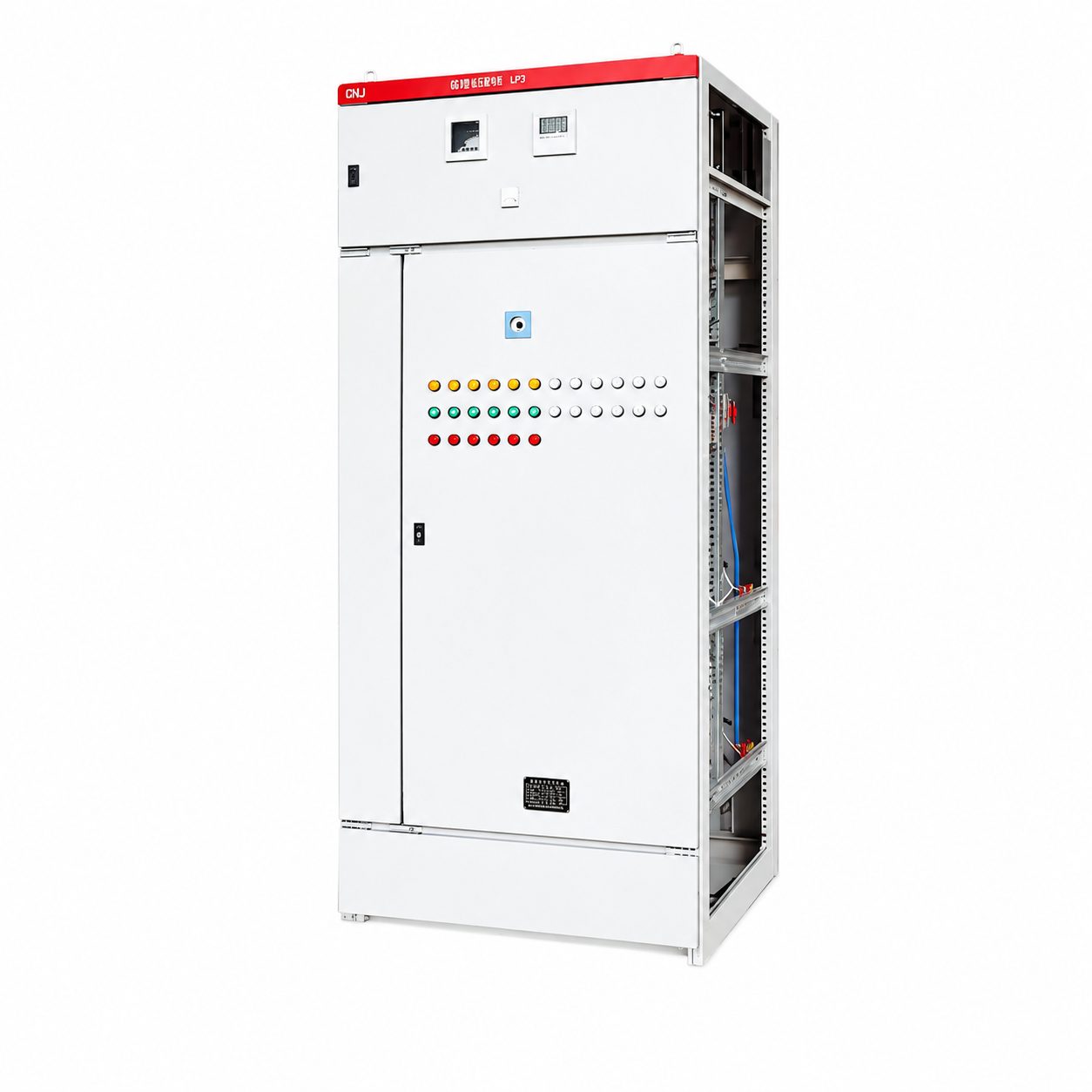

GGJ Low voltage intelligent reactive power compensation cabinet

The full name of GGJ low-voltage cabinet is GGJ-type Low-Voltage Reactive Power Compensation Cabinet. It is a functional cabinet specifically designed for low-voltage power distribution systems. Its core function is to dynamically compensate for reactive power in power systems. By accurately regulating reactive current, it achieves the goals of “improving power factor, reducing line losses, and enhancing power quality”. It is a key equipment in industrial, commercial, and infrastructure power systems to ensure the efficient use of energy.

I.Core Functions and Core Values

1. Improve Power Factor and Avoid Electricity Bill Penalties:

In power systems, inductive loads such as motors, transformers, and frequency converters consume a large amount of reactive power, leading to a decrease in power factor (if it is lower than 0.85, power grid companies in most regions will charge a “power factor electricity bill penalty”). The GGJ cabinet supplements reactive power by switching in capacitor banks, which can stably increase the power factor to above 0.95, helping users avoid penalties and meanwhile comply with power grid supply specifications.

2. Reduce Line Losses and Save Electric Energy Costs:

Reactive power will increase line current (i.e., “reactive current”), causing heat loss in conductors (loss is proportional to the square of the current). After the GGJ cabinet compensates for reactive power, the total line current decreases, which can reduce line losses by 10%-20%. Especially in long-distance power distribution lines (such as factory workshops and large communities), the annual power-saving effect is remarkable.

3. Improve Power Quality and Protect Electrical Equipment:

Insufficient reactive power will cause power grid voltage fluctuations and sags, affecting the stable operation of precision equipment (such as CNC machine tools and servers). The GGJ cabinet stabilizes the power grid voltage by dynamically adjusting the reactive power compensation capacity, reduces equipment failures caused by abnormal voltage (such as motor burnout and equipment crash), and extends the service life of equipment.

II. Technical characteristics and working principle

1. 1.Core Working Principle:

① Real-time monitoring: The intelligent controller inside the cabinet continuously collects parameters of the power grid, such as voltage, current, power factor, and reactive power;

② Intelligent judgment: The controller calculates the required compensation capacity according to preset thresholds (for example, compensation is activated when the power factor is lower than 0.9);

③ Dynamic switching: Through contactors or thyristors (fast switching modules), capacitor banks with corresponding capacities are automatically switched in or out to accurately match the reactive power demand of the power grid.

2. Key Technical Features:

① High-precision Compensation with Rapid Response:

It adopts the “fuzzy control + cyclic switching” algorithm to avoid power grid shocks caused by frequent switching of capacitor banks; the response time is ≤20ms, which can adapt to scenarios with rapidly changing loads (such as intermittent loads like electric welders and stamping machines), ensuring the power factor remains stable within the target range.

② Multiple Safety Protections with High Reliability:

It has built-in all-round protection mechanisms to ensure the safety of equipment and the power grid:

Overvoltage protection: Capacitors are automatically disconnected when the grid voltage exceeds 420V to prevent capacitor breakdown.

Undervoltage protection: Compensation stops when the voltage is lower than 320V to avoid damage to equipment during low-voltage operation.

Overcurrent protection: When a capacitor or line is short-circuited, the circuit breaker trips quickly to isolate the fault.

Harmonic protection: For high-harmonic loads (such as frequency converters), series reactors (with a reactance rate of 7% or 14%) are configured to suppress the 3rd to 25th harmonics and prevent capacitors from overheating due to harmonic overload.

③ Adapt to Complex Load Scenarios:

It supports the combination of “three-phase compensation + single-phase compensation”: For three-phase unbalanced loads (such as lighting and air conditioning in commercial buildings), single-phase capacitors can compensate for the reactive power deviation of each phase, avoiding the low overall power factor caused by insufficient reactive power in a certain phase.

④ Intelligent Operation and Maintenance for Convenient Management:

Most models support the RS-485 communication interface (Modbus protocol) and can be connected to a power distribution monitoring system (SCADA) or cloud platform to realize:

Remote viewing: Real-time monitoring of data such as power factor, compensation capacity, and capacitor status.

Fault early warning: Automatic push of alarm information when abnormalities such as capacitor end-of-life and reactor overheating occur.

Data traceability: Storage of historical compensation records (such as daily/monthly power factor curves) to facilitate energy consumption analysis and operation and maintenance review.

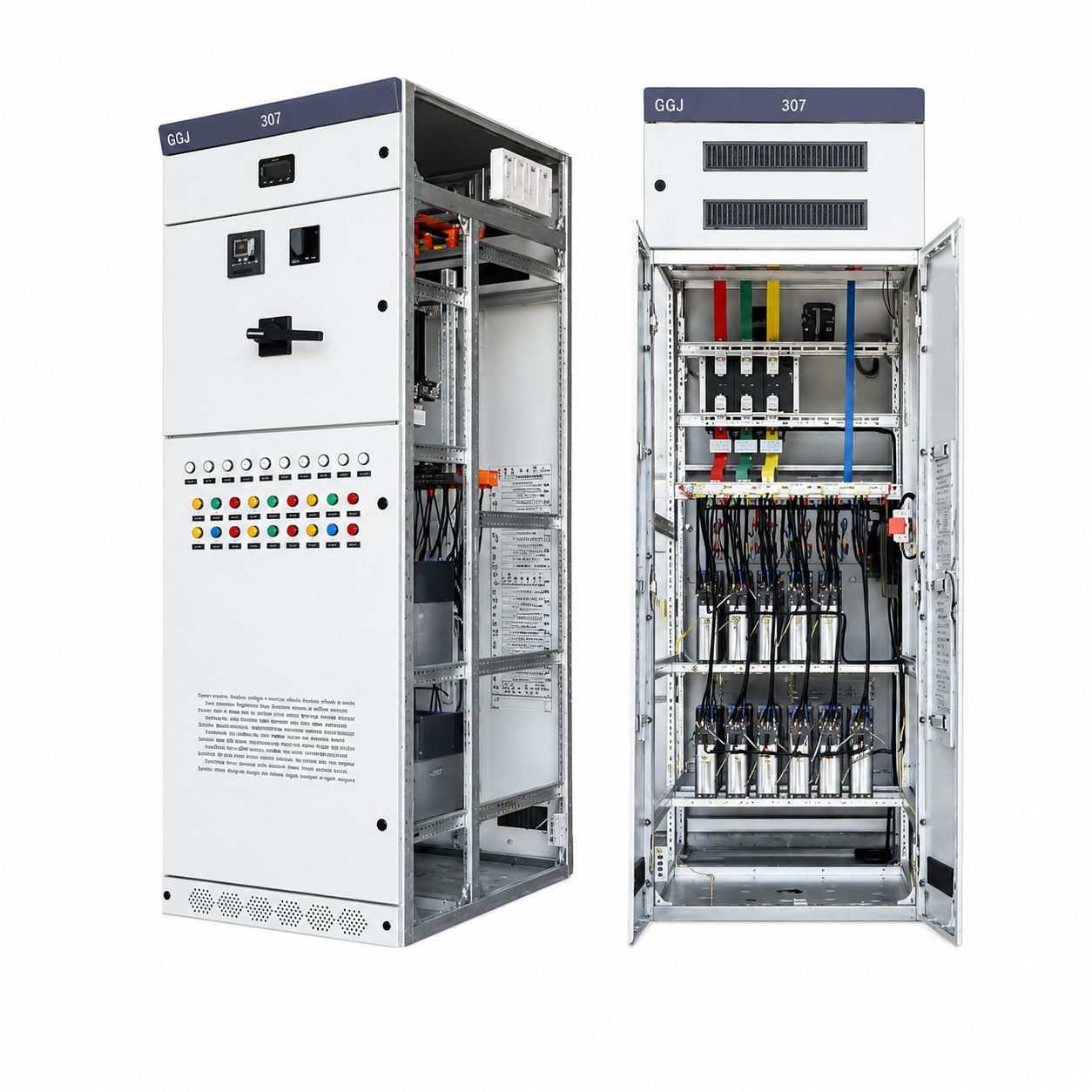

III. Structural Composition

The structure of the GGJ low-voltage cabinet is designed based on the concept of “stable support + functional integration”, and it is mainly composed of three parts: cabinet frame, core functional units, and auxiliary components:

IV. Typical Application Scenarios

The application scenarios of GGJ low-voltage cabinets cover “low-voltage power distribution systems that require reactive power compensation” and are particularly suitable for the following scenarios:

1.Industrial Field (Scenarios with High Inductive Loads)

① Manufacturing industry: Machine factories (lathes, milling machines), cement factories (ball mills, crushers), steel mills (steel rolling machines, fans), etc., compensate for the reactive power loss of inductive loads and improve the stability of production equipment;

② Light industry: Textile factories (weaving machines), food factories (compressors), avoid equipment shutdown caused by insufficient reactive power.

2.Commercial and Civil Buildings (Large Power Consumption Scenarios)

① Large shopping malls, office buildings: Compensate the reactive power of air conditioning units, elevators, and water pumps to reduce the electricity expenses of the property;

② High-end communities: Centrally compensate for the reactive power loss in residents’ electricity consumption to avoid the impact of power grid voltage fluctuations on the service life of household appliances.

3.Infrastructure (Public Power Consumption Scenarios)

① Substations, distribution rooms: Configure GGJ cabinets in 10kV/0.4kV transformer areas to improve the power factor of the entire transformer area and reduce power grid line losses;

② Transportation hubs: Low-voltage power distribution systems in subway stations and high-speed railway stations, compensate for the reactive power of ventilation, lighting, and security inspection equipment to ensure stable power supply.

V. Key Points for Type Selection and Installation

1.Accurately Calculate Compensation Capacity：

The compensation capacity shall be determined based on the load type and transformer capacity:

①Formula reference: Compensation capacity Q=P×(tanφ₁- tanφ₂)  (where P is active power, φ₁ is the power factor angle before compensation, and φ₂ is the target power factor angle).

②Conventional scenarios: Configure at 20% – 40% of the transformer capacity (e.g., for a 1000kVA transformer, a GGJ cabinet with 200 – 400kvar can be selected);

③High inductive loads (such as motors accounting for over 60%): Need to be increased to 40% – 60%.

Evaluate Harmonic RequirementsIf the load contains harmonic sources such as frequency converters, electric welders, and UPS, the combination scheme of “capacitor + reactor” shall be selected:

①Mainly 3rd harmonic: Select a reactor with a series reactance rate of 7%;

②Mainly 5th and above harmonics: Select a reactor with a series reactance rate of 14% to avoid capacitor damage caused by harmonic amplification.

Adapt to the Installation Environment

① Protection class: For dusty and humid environments (such as workshops and underground distribution rooms), select cabinets with IP40 protection;

② Material requirements: For coastal or highly corrosive environments (such as chemical plants), the cabinet body requires double anti-corrosion treatment of hot-dip galvanizing + spray molding;

③ Space requirements: Reserve a maintenance channel of ≥800mm in front of and behind the cabinet body, and reserve a heat dissipation space of ≥300mm at the top.

4.Preferentially Select Intelligent ModelsIf remote monitoring or energy consumption management is needed, select models that support the Modbus protocol and have fault early warning functions, which facilitates later access to intelligent power distribution systems and reduces the cost of manual inspection.
