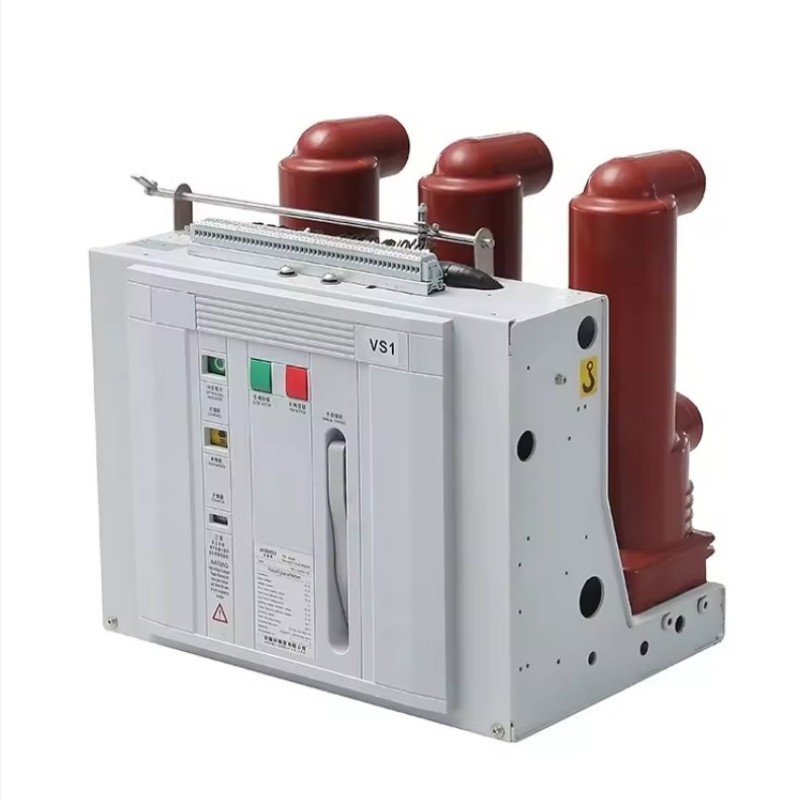

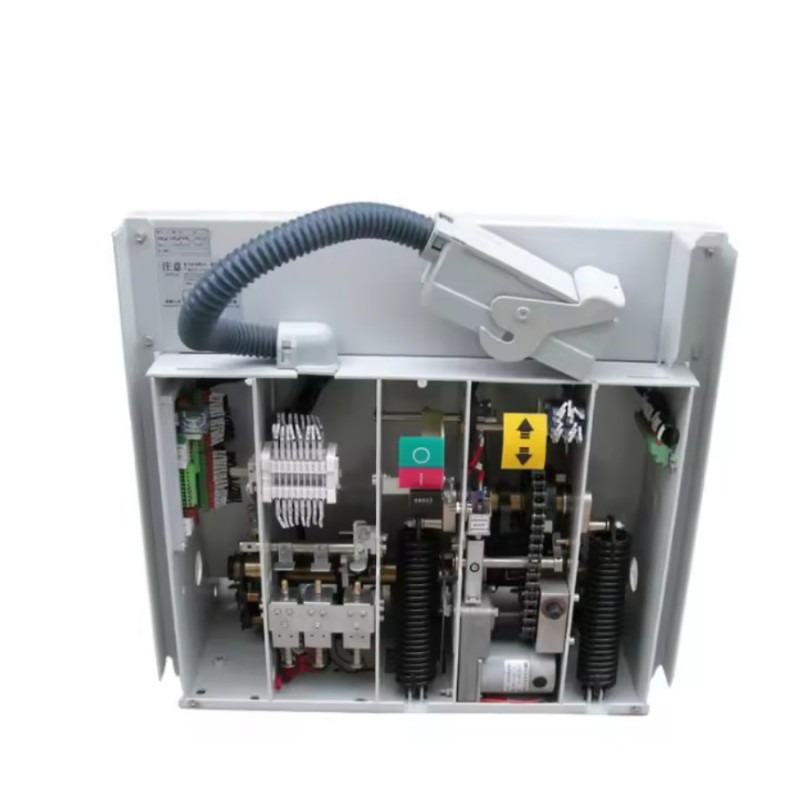

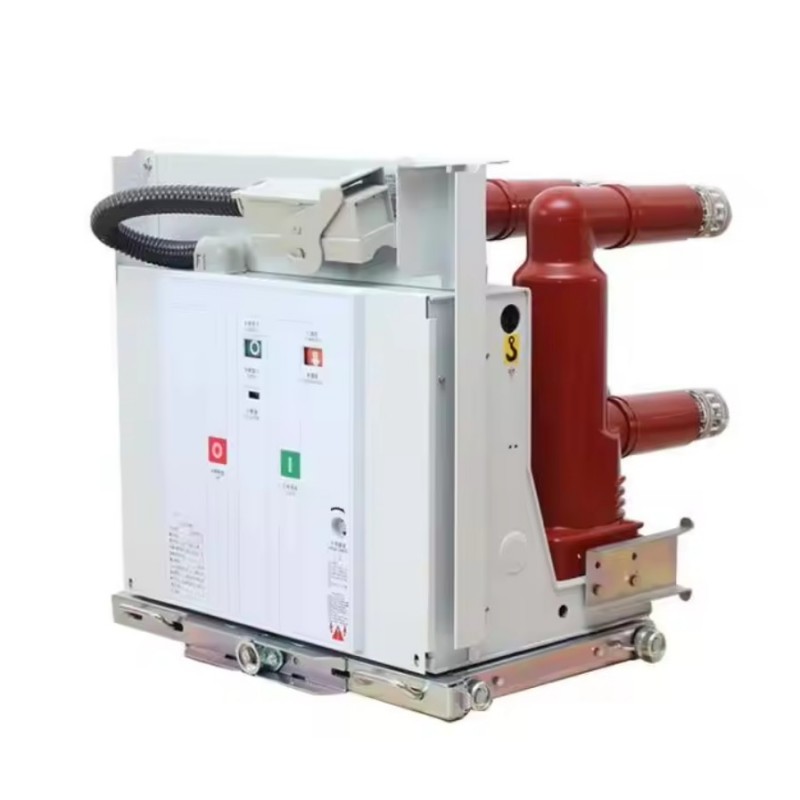

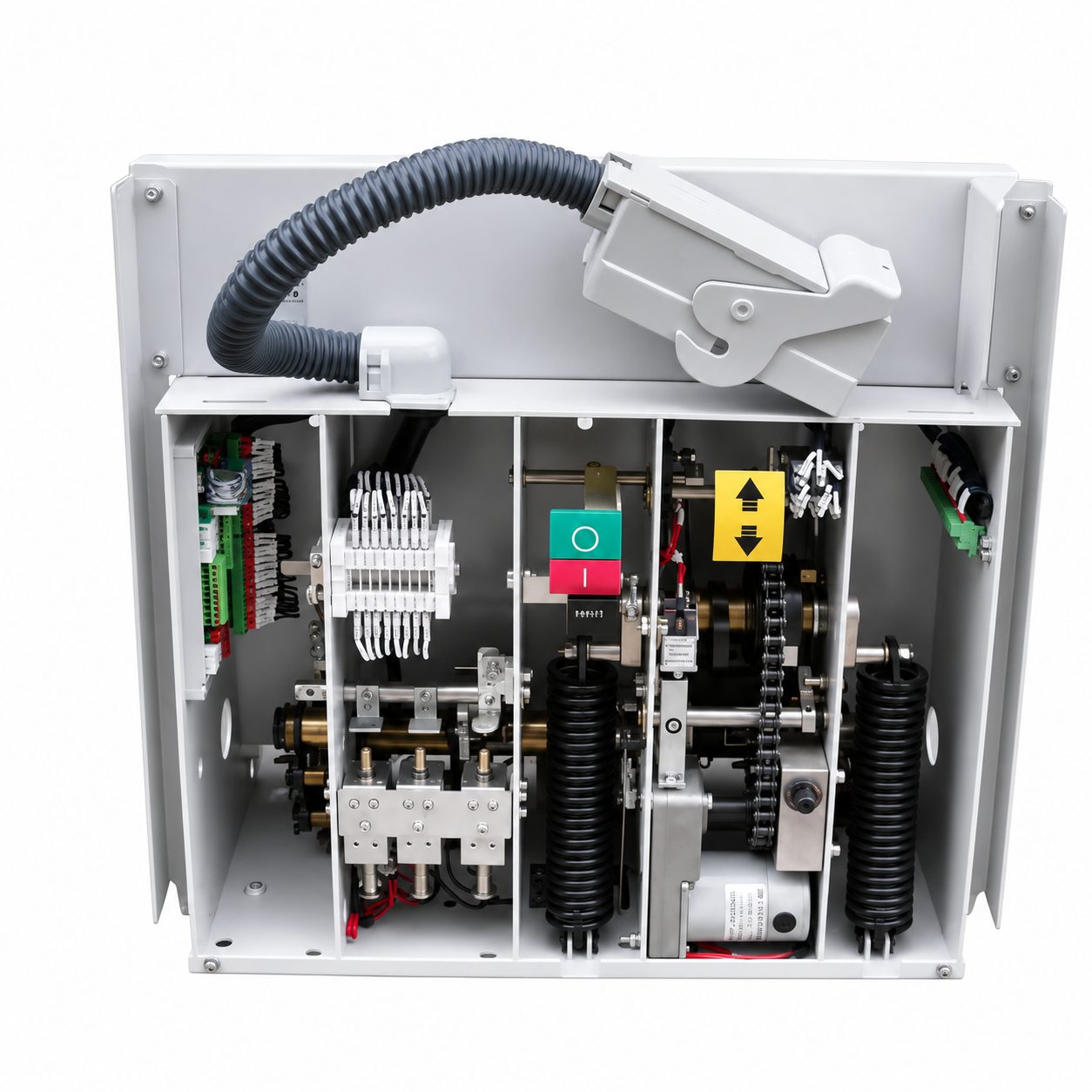

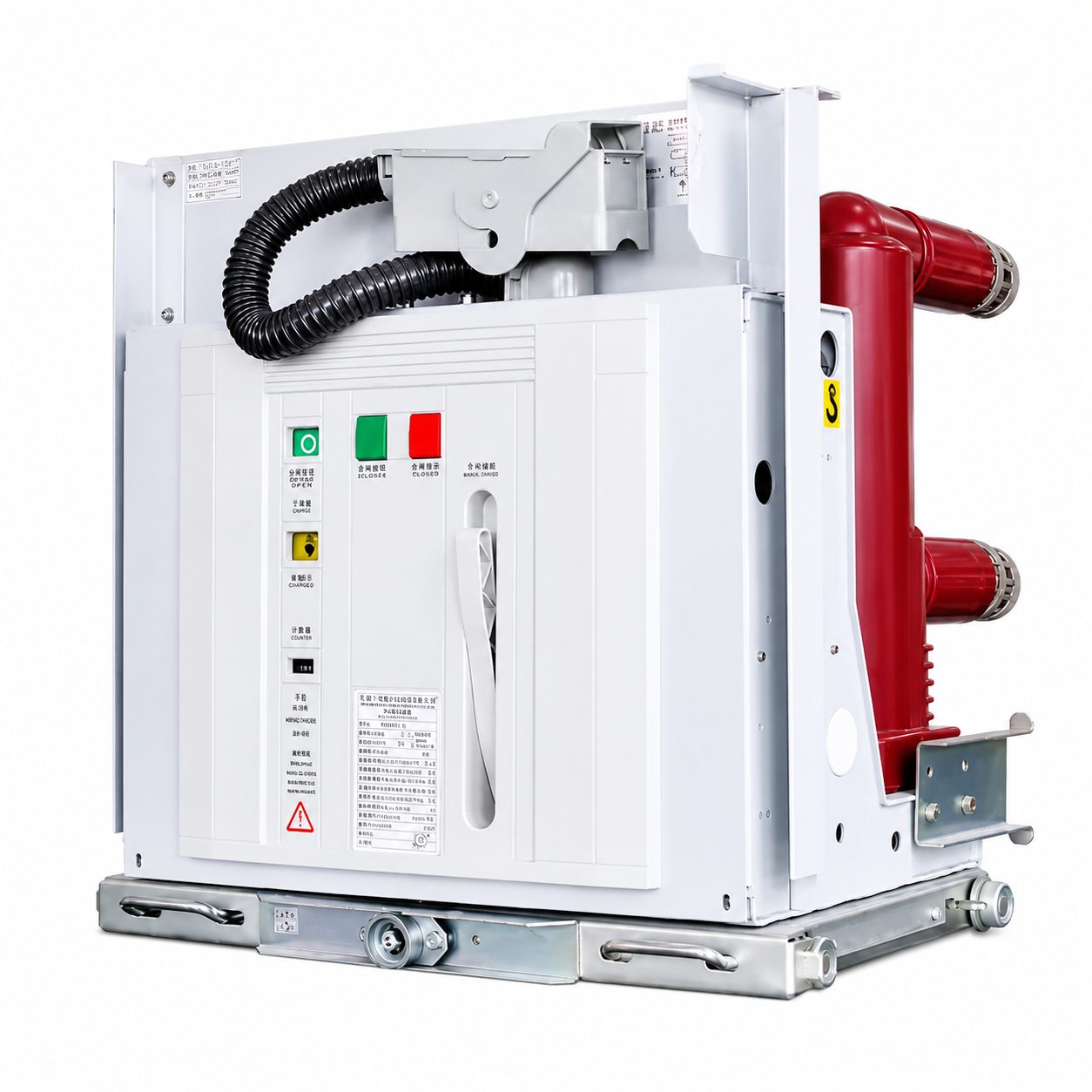

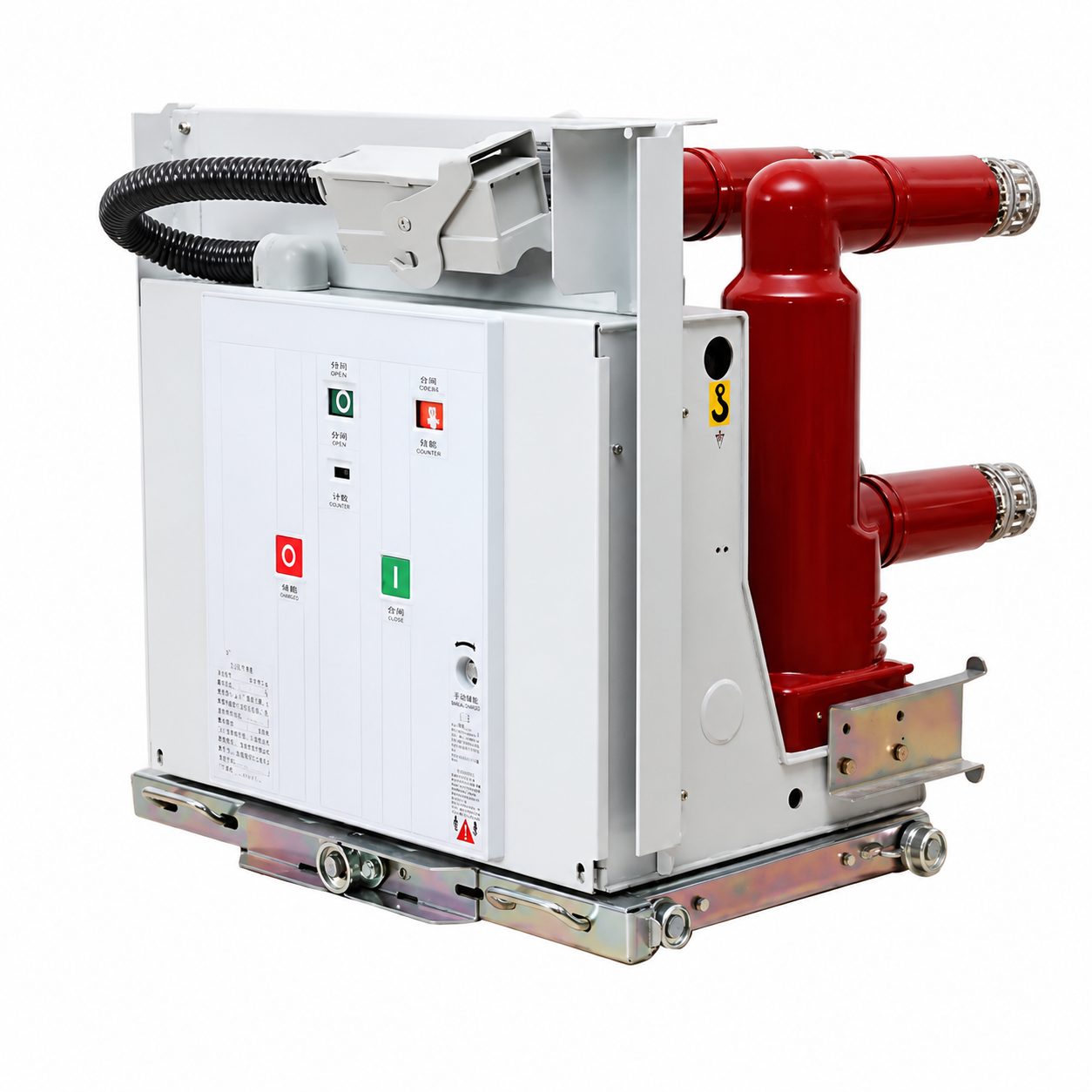

VS1-11 Vacuum Circuit Breaker
The 11KV VS1 circuit breaker is an indoor high-voltage vacuum circuit breaker designed for international standard adaptation and special high-voltage applications. It is compatible with three-phase 50Hz/60Hz power frequency AC circuits, with a rated voltage of 11KV. It is primarily used for high-voltage distribution network control and protection in foreign-related large industrial enterprises, multinational industrial parks, international standard distribution network projects, and certain specialized industries (such as oil and gas extraction, large data centers). This product adheres to both domestic GB standards and international IEC/ANSI standards, featuring optimized insulation levels, electrical parameters, and structural compatibility based on the 10KV model.
It employs an integrated modular design for the mechanism and circuit breaker, offering a compact structure and reliable operation. The product supports both fixed and withdrawable trolley installation forms, compatible with international standard high-voltage switchgear. Equipped with high-precision vacuum arc extinguishing chambers and wear-resistant contact materials, it delivers stable arc extinguishing performance and robust breaking capacity. With no harmful gas emissions or noise pollution, it effectively addresses the complex loads, harsh operating conditions, and voltage stability requirements of foreign-related projects and specialized industries. It can swiftly interrupt overload, short-circuit, and zero-sequence fault currents, ensuring the safe and stable operation of distribution networks and equipment in special scenarios. Suitable for working conditions at altitudes ≤3000m and ambient temperatures ranging from -30°C to 50°C, it is the preferred equipment for foreign-related high-voltage distribution networks and specialized industries.
Features
1. Dual standard compatibility, suitable for foreign-related projects:
The product manufacturing strictly follows the domestic GB1984, DL/T403 standards, and also complies with international IEC60056, IEC62271-106, and ANSI standards. It has passed international authoritative certifications such as KEMA and CE, and its electrical parameters and installation dimensions are compatible with similar international products. It can directly adapt to foreign-related projects, multinational industrial parks, and imported power distribution equipment without additional modifications, meeting international project acceptance requirements and reducing equipment adaptation costs for foreign-related projects.
2. Balanced insulation and breaking performance, suitable for complex working conditions:
The epoxy resin APG process is used to cast the insulation cylinder as a whole, with sufficient anti creepage distance. The rated short-time power frequency withstand voltage (1 minute) can reach 80kV (relative to ground, phase to phase), 90kV (fracture), and the rated lightning impulse withstand voltage (peak) can reach 130kV (relative to ground, phase to phase), 150kV (fracture), and can stably withstand 11KV high voltage loads; The rated short-circuit breaking current can reach 40~50kA, with balanced breaking performance. It can reliably break various loads and fault currents, adapting to the complex load and voltage fluctuation requirements of special industries such as oil and gas extraction and data centers.
3. Structural compatibility and strong interchangeability:
Adopting a modular structure design, core components such as electrical components and arc extinguishing chambers can be interchanged with international VS1 circuit breakers of the same voltage level. At the same time, it is compatible with both domestic and international standards of high-voltage switchgear. The handcart model adopts an international standard plug-in structure, which is smooth and reliable in contact, and can achieve live extraction maintenance, reducing power outage range and downtime, and improving the convenience of operation and maintenance of foreign-related projects.
4. Excellent protection performance, suitable for harsh environment:
the parts are made of high quality alloy materials that are temperature resistant, corrosion resistant and anti-aging. After special anti-corrosion treatment and optimized sealing structure, they have good dust-proof, moisture-proof, salt fog resistant and electromagnetic interference resistant properties. They can adapt to the corrosive environment in the oil and gas exploration plant area, the constant temperature and humidity environment in the data center, and the complex climate conditions in the transnational park. The mechanical life can reach 30000 times, and the breaking times of full capacity short circuit current can reach 80 times, with high operation stability.
5. Intelligent and controllable, efficient operation and maintenance:
International standard intelligent control interfaces are reserved, and internationally common intelligent monitoring units can be installed to achieve remote opening and closing, real-time monitoring of operating status (current, voltage, temperature, vacuum degree), fault self diagnosis and remote fault location functions. It supports linkage with international mainstream distribution network automation systems, adapts to the intelligent and unmanned operation and maintenance needs of foreign-related projects, and can provide a multilingual operation and maintenance interface to facilitate the operation and maintenance management of international projects.
The rated current of this product covers 1600A~4000A, and different specifications such as 2000A, 3150A, 4000A can be customized according to scene requirements. The rated short-circuit breaking current is 40~50kA, the rated short-circuit closing current can reach 100~125kA, the rated short-circuit duration is 4s, the closing time is 35~75ms, the opening time is 20~50ms, the closing bounce time is ≤ 2ms, the opening and closing asynchrony is ≤ 2ms, and the contact resistance is ≤ 100 μ Ω, meeting the high load requirements of foreign-related projects and special industries.
The suitable environmental conditions are: the daily average relative humidity does not exceed 95%, the monthly average does not exceed 90%, the earthquake intensity does not exceed 8 degrees, there is no severe vibration, strong chemical corrosion (can be customized for anti-corrosion upgrade), explosion hazard, and places with serious pollution; Oil and gas extraction scenarios can be customized with enhanced anti-corrosion and explosion prevention solutions, while data center scenarios can be customized with electromagnetic interference prevention and temperature adaptation solutions.
Each product undergoes strict type testing, factory inspection, and international standard certification, accompanied by complete international and domestic testing reports, certification documents, and multilingual product manuals; Supporting customized manual/electric operation modes, intelligent monitoring functions, and special protection solutions, it can be used with international standard fuse handcarts, isolation handcarts, voltage transformer handcarts, and other supporting products. It has strong universality and accessories can be conveniently supplied globally.
