FLN36-24

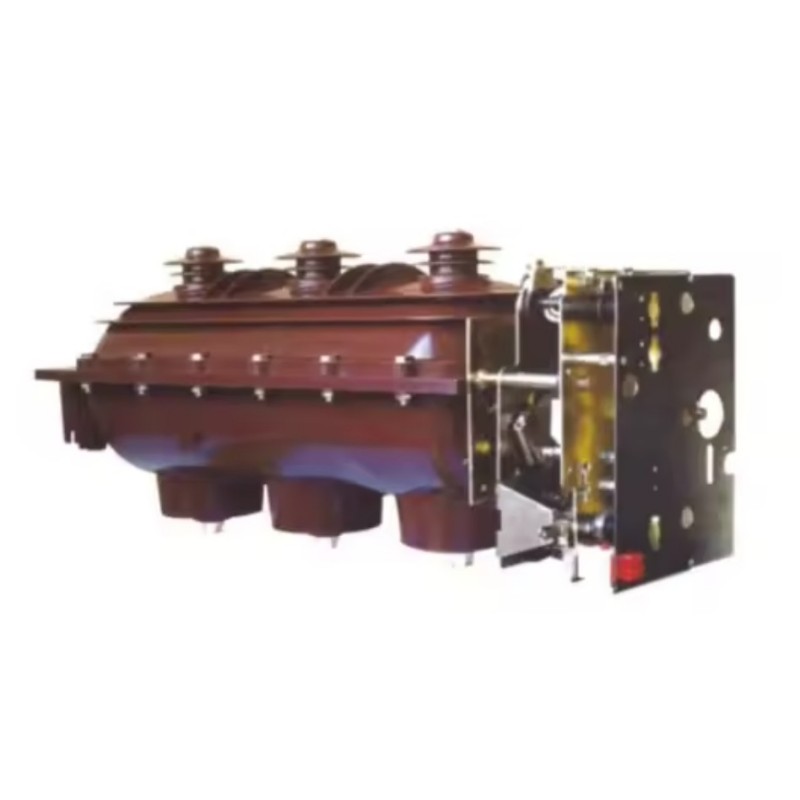

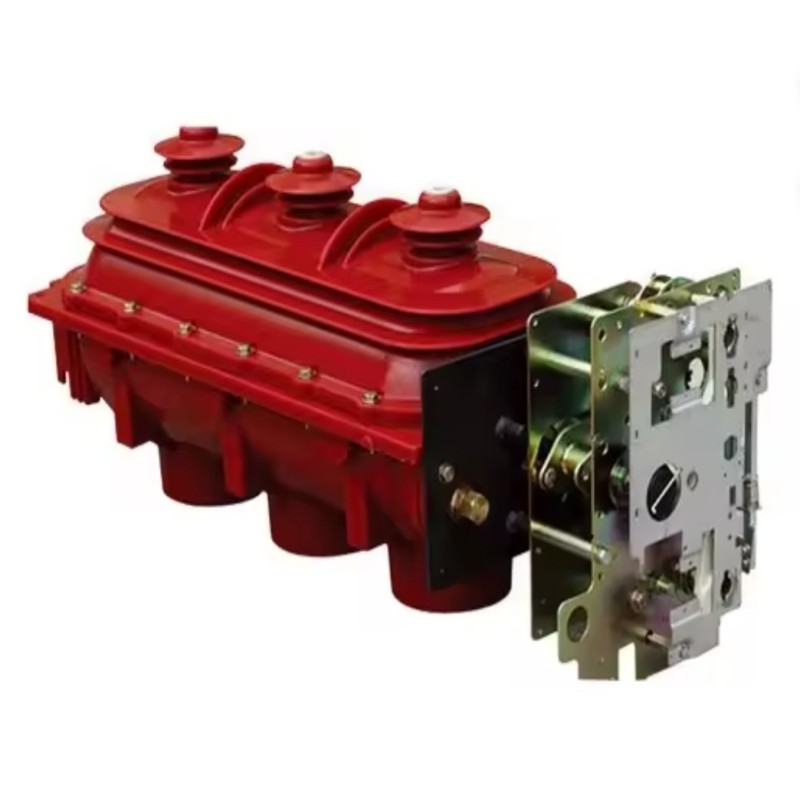

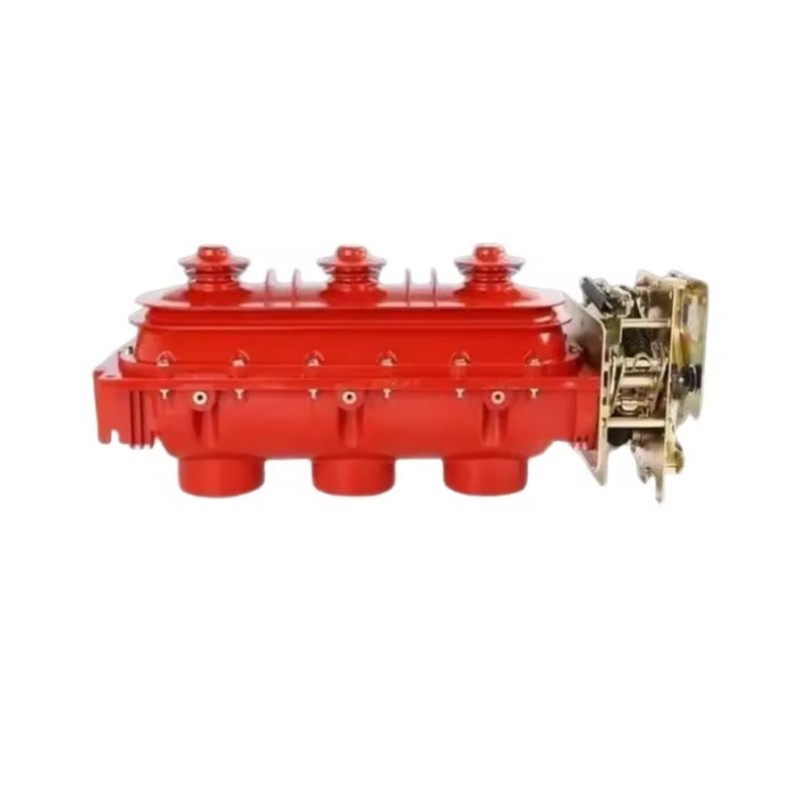

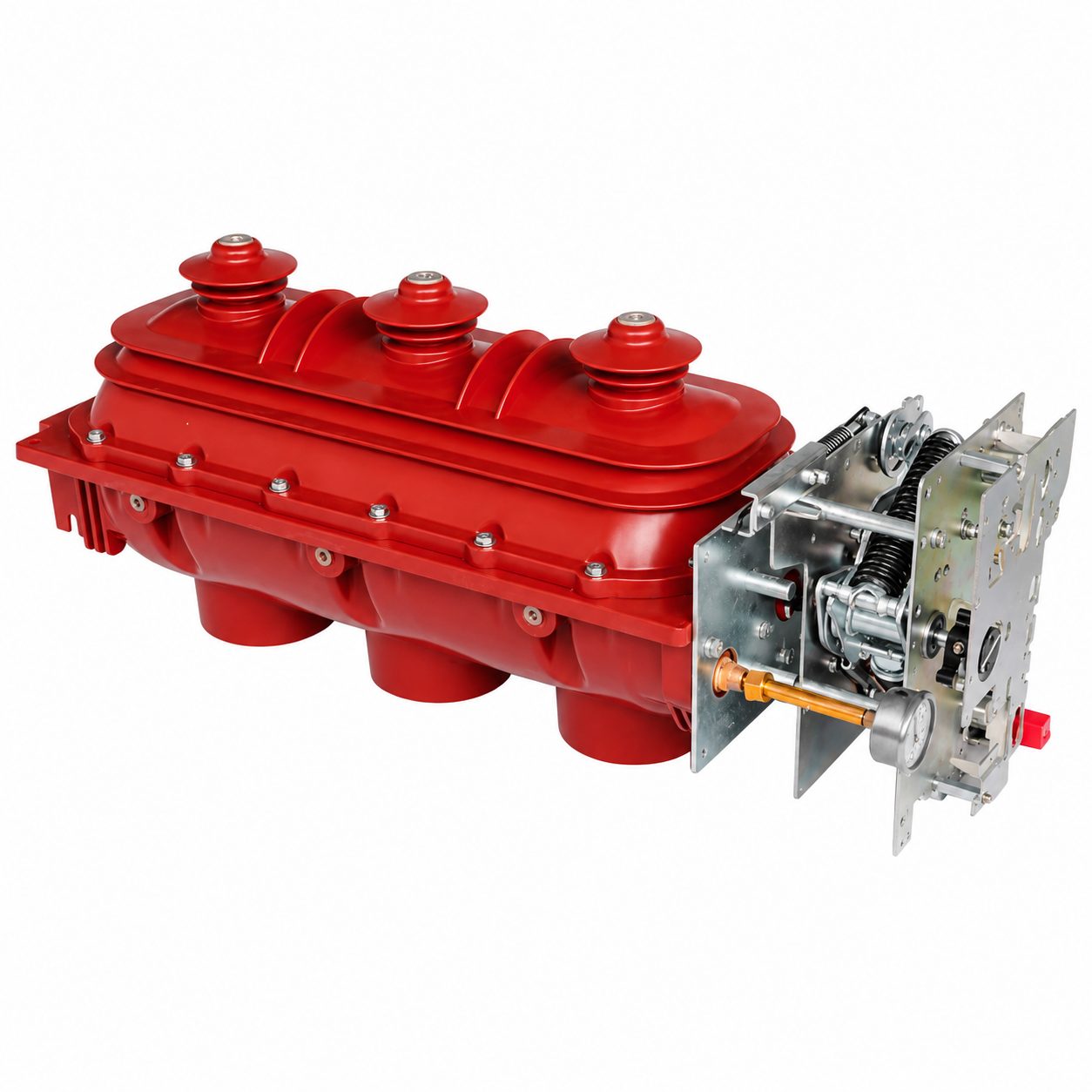

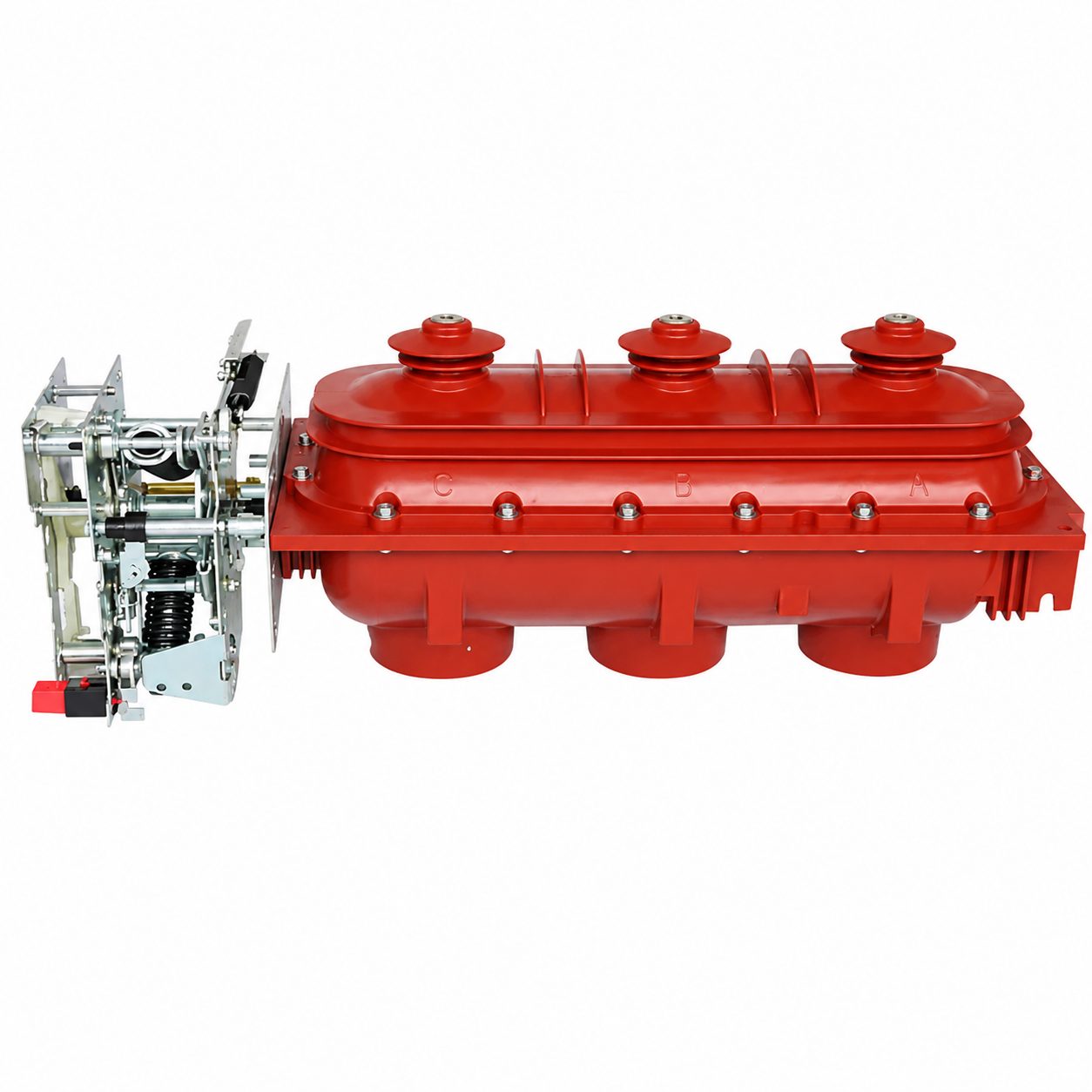

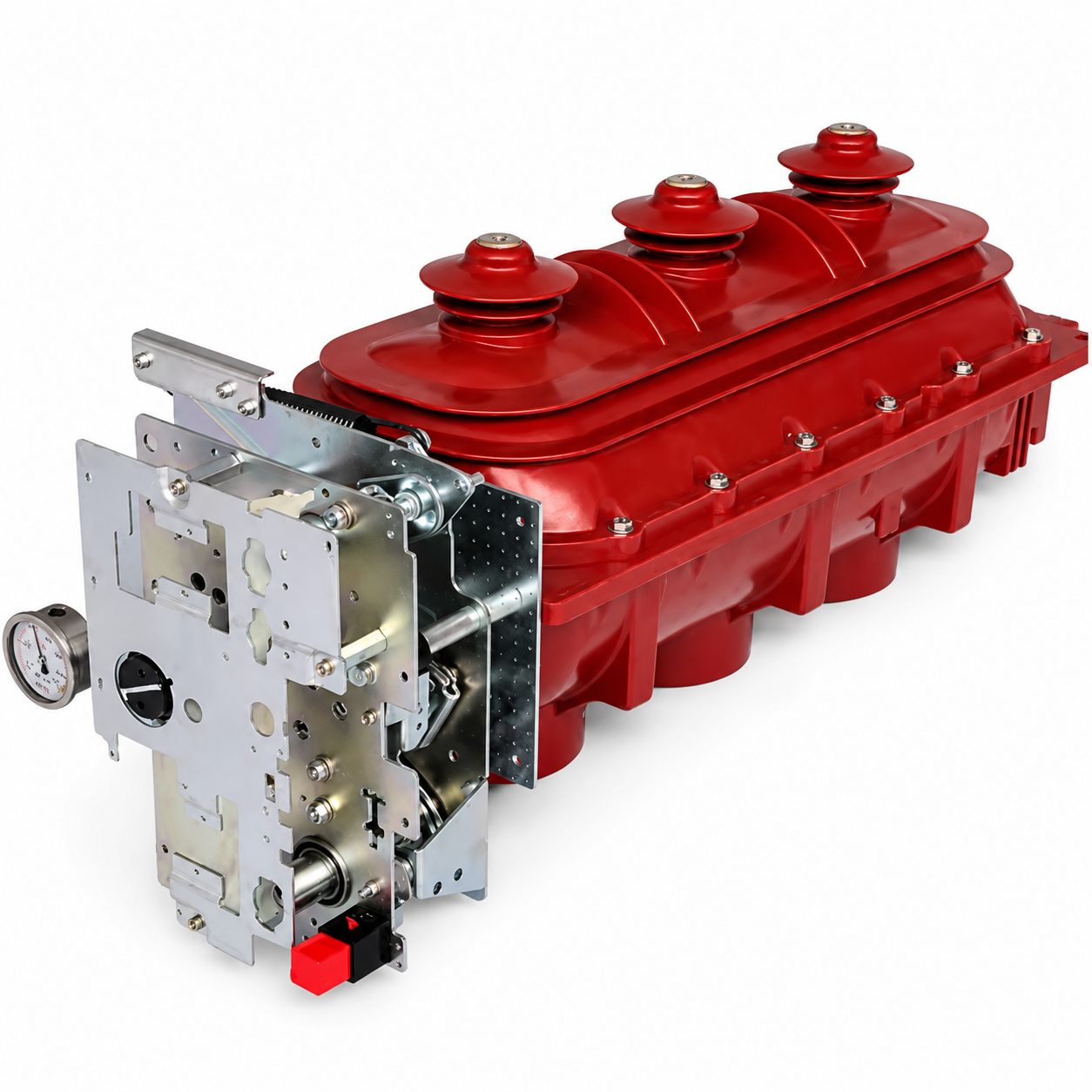

FLN36-24 SF6 Load Break Switch
FLN36-24KV SF6 load switch is an indoor/outdoor universal AC high-voltage switchgear developed specifically for high-voltage distribution network core hubs, multinational super large energy projects, and super large industrial bases. It uses high-purity SF6 gas as the insulation and arc extinguishing medium, strictly follows GB3804-2004, GB16926-2009, IEC 62271-105, and IEC 61850 standards for research and development and manufacturing, with a rated voltage of 24KV and a rated frequency of 50/60Hz dual frequency adaptation. The rated current is 1600A/2000A/2500A optional, and the mechanical life is ≥ 2200 cycles.
The product adopts a high-strength epoxy resin segmented casting sealing structure, matched with a top-level military grade anti-corrosion alloy shell, equipped with an I-type five spring energy storage operating mechanism, which can achieve precise linkage of “closing opening grounding locking energy storage self inspection linkage” in seven positions, supporting intelligent remote control, data acquisition, linkage regulation, automatic operation and maintenance, digital traceability, fault self inspection and multi device collaborative linkage. The incoming and outgoing lines support multiple ways of adaptation for cables, busbars, overhead lines, and are suitable for installation forms such as ring main units, prefabricated substations, outdoor switch stations, high-voltage distribution network core hub stations, and cross-border super large energy project distribution stations.
The core is used for 24KV The core hub of high-voltage distribution network, cross-border ultra large energy projects, super large industrial bases, and ultra high power long-distance distribution can rely on breaking normal load current, cable charging current, no-load transformer current, and short-circuit transfer current. It is a flagship core equipment for top-level power, full field adaptation, and intelligent upgrading of high-voltage distribution network.
Features
1. Top level high voltage dual frequency adaptation, flagship level scene compatibility:
specially developed for 24KV top level medium and high voltage levels, the insulation structure and arc extinguishing system have been fully upgraded according to 24KV voltage standards, and the insulation gap has been expanded by 10% compared to 22KV products, which can effectively resist the risk of high voltage insulation breakdown; Simultaneously supporting 50/60Hz dual frequency adaptation, it is perfectly compatible with the upgrading scenarios of domestic high-voltage distribution network core hubs and the distribution needs of cross-border ultra large energy projects (such as high-end energy projects in Europe, America, and the Middle East), and can be directly put into use without additional modifications, solving the core pain point of incompatibility between top-level high-voltage grades and cross-border frequencies, and adapting to the dual needs of flagship high-voltage distribution network scenarios and cross-border ultra large projects.
2. Flagship level power carrying, no pressure under extreme loads:
The rated current supports three options of 1600A/2000A/2500A, and the rated short-time withstand current is increased to 65kA/3s, which is more than 8% higher than the carrying capacity of 22KV products. The 2500A ultra high power version can carry extreme high load power supply for super large industrial bases and multinational super large energy projects; Simultaneously optimizing the conductor material and structure, the transmission loss of the line is reduced by 7% compared to 22KV products, which can be adapted to ultra high power long-distance distribution scenarios (30km~40km) without the need for additional boosting and lowering equipment, significantly reducing the construction and operation costs of the distribution network and improving distribution efficiency.
3. Flagship configuration for insulation arc extinguishing, absolute guarantee of high voltage safety:
Ultra high purity SF6 gas (purity ≥ 99.9999%) is used as the insulation and arc extinguishing medium, and the rated pressure is increased to 0.095MPa at 20 ℃. The arc extinguishing chamber adopts a new flagship level ultra efficient arc extinguishing structure+five arc adsorption device, and the arc extinguishing efficiency is increased by 9% compared to 22KV products. The opening and extinguishing time is ≤ 8ms, which can quickly and reliably cut off various complex load currents and short-circuit transfer currents at 24KV level. The arc extinguishing process has no open flames, harmful emissions, or arc leakage; SF6 gas leakage rate ≤ 1 × 10 ⁻⁹ Pa · m ³/s, insulation performance meets international top-level high-voltage distribution standards, eliminates various high-voltage insulation safety hazards, and ensures long-term stable operation of equipment.
4. Flagship intelligent operating mechanism, maximizing operation and maintenance efficiency:
equipped with I-type five spring energy storage operating mechanism, adopting top-level military grade transmission structure and intelligent locking system, the mechanical life is extended to 2200 cycles, which is 10% higher than 22KV products; On the basis of fault self inspection, new equipment collaborative linkage functions have been added, which can seamlessly link with the distribution network IoT platform and other distribution equipment to achieve load collaborative allocation and fault collaborative processing; Supports eight operation modes: manual, electric, remote control, intelligent linkage, automatic operation and maintenance, digital traceability, fault self inspection, and multi device collaborative linkage. The electric operation adopts top-level industrial grade PLC intelligent control module, which can achieve full automation of operation and maintenance, data visualization, and precise fault positioning, and adapt to the flagship intelligent unmanned and refined operation and maintenance needs of high-voltage distribution network.
5. Top level protection without dead corners, suitable for all extreme scenarios:
The shell is made of high-strength epoxy resin segmented casting+top-level military grade anti-corrosion alloy shell, with a protection level of up to IP68+++, which can effectively resist all extreme environments such as long-term deep water immersion (within 2.5m), strong corrosion, strong vibration, extreme high and low temperatures, strong ultraviolet rays, dust storms, blizzards, strong lightning strikes, etc; The applicable environmental temperature range is extended to -60 ℃~+75 ℃, and the altitude can be extended to 6000m. It can adapt to extreme cold, extreme heat, extreme high altitude, strong corrosion, dust storms, blizzards, strong lightning strikes and other extreme scenarios. Outdoor outdoor installation does not require additional protection, and it is suitable for the dual needs of multinational super large projects and domestic flagship extreme scenarios.
The product has a rated peak withstand current of 145kA, rated lightning impulse withstand voltage of 220kV between phases and to ground, 240kV between faults, rated short-time power frequency withstand voltage of 140kV between phases and to ground, 150kV between faults; rated active load breaking current of 1600A/2000A/2500A is optional, rated cable charging current of 220A, can break no-load transformer capacity of 8000kVA, rated short-circuit transfer current of 55kA;
SF6 gas rated pressure (gauge pressure at 20 ℃) of 0.095MPa, equipped with gas density relay, sound and light alarm device, leakage online detection sensor, five arc adsorption device, intelligent operation and maintenance module, digital traceability module, fault self checking module and multi device collaborative linkage module. When the pressure is below 0.085MPa, it automatically alarms, uploads data and triggers linkage. Protection;
The applicable environmental humidity is that the average daily relative humidity does not exceed 95%, and the average monthly relative humidity does not exceed 90%. It can withstand strong corrosive gases, strong vibrations, extreme high and low temperature impacts, direct ultraviolet radiation, dust storms, blizzards, strong lightning strikes, and long-term deep water immersion; The implementation standards include GB3804-2004, GB16926-2009, IEC 60265-1, IEC 62271-105, IEC 61850, and are compatible with EU EN standards, US ANSI standards, and high-end distribution standards in the Middle East. They can meet the compliance requirements of cross-border large-scale energy projects and domestic high-voltage distribution network flagship scenarios.
The product can be customized with ultra high power versions (2500A), fully extreme environment adaptation versions (extreme cold, extreme heat, extreme high altitude, dust storms, strong lightning strikes), cross-border ultra large project specific versions (multilingual operation interface, international top-level certification), and intelligent upgrade versions. It can be equipped with fuses, lightning arresters, current transformers, voltage transformers, intelligent measurement and control devices, power quality monitoring modules, digital traceability systems, fault self checking systems, multi device collaborative linkage systems and other accessories to form a complete top-level intelligent high-voltage protection system.
If you need detailed technical parameter tables, installation drawings, cross-border ultra large energy project adaptation solutions, ultra high power long-distance distribution solutions or sample applications, you can contact the manufacturer’s technical team for exclusive support. In addition, the product supports top-level global technical services and can provide on-site installation, debugging, operation and maintenance guidance, technical training, and long-term operation and maintenance support for cross-border large-scale projects, ensuring stable operation throughout the project lifecycle;
Simultaneously supporting the digitization and intelligent upgrading of distribution networks, it can seamlessly integrate with domestic and foreign distribution network IoT platforms and intelligent distribution systems, achieving real-time monitoring, intelligent regulation, load coordination and rapid fault handling of equipment operation status, and helping high-voltage distribution networks achieve flagship upgrades.
Let’s Get Started
Providing you with the most trusted energy solutions in an unpredictable world.
Contact UsRequest an Insurance Quote
Specification
| Item | Unit | Data | |
| Rated voltage | kV | 24 | |
| Main circuit lightning impulse withstand voltage (Same,relative/between fracture surfaces) (peak value) | kV | 125 | 145 |
| Main circuit 1-minute power frequency withstand voltage (Same,relative/between fracture surfaces) (peak value) | kV | 50 | 60 |
| 1-minute power frequency withstand voltage of auxiliary circuit | kV | ||
| Rated current | A | 630 | |
| Transfer current | A | 870 | |
| Rated short-circuit closing current (peak) | kA | 50 | |
| Rated short-time withstand current | kA | 20 | |
| Rated short-circuit duration | S | 3 | |
| Rated peak withstand current (peak) | kA | 50 | |
| Grounding switch closing current (peak) | kA | 20 | |
| Peak withstand current of grounding switch (peak) | kA | 50 | |
| Mechanical lifespan of load switch | times | 3000 | |
| Mechanical lifespan of grounding switch | times | 2000 | |
| Rated pressure of arc extinguishing chamber (20 °C) | bar | 1.45 | |
Download
Related Products
FAQs
What are the core upgrade points and flagship advantages of FLN36-24KV compared to FLN36-22KV products?
The core upgrade points are concentrated in five aspects: firstly, voltage and load capacity. The 24KV insulation gap is expanded by 10%, supporting flagship power of 2500A, with a short-term withstand current of 65kA, stronger load capacity, and adaptability to extreme high loads; The second is loss and transmission. 24KV transmission loss is reduced by 7%, which can be adapted to distribution over longer distances of 30km~40km; The third is the operating mechanism, with the addition of collaborative linkage functions for 24KV equipment, increasing the mechanical lifespan to 2200 times and making operation and maintenance more intelligent and efficient; The fourth is the protection level, reaching IP68+++at 24KV, capable of long-term immersion in 2.5m deep water, suitable for all extreme scenarios; The fifth aspect is gas purity and leakage rate. 24KV SF6 has higher purity and lower leakage rate, ensuring better insulation safety. Flagship level advantages: It can adapt to flagship level scenarios such as core hubs of high-voltage distribution networks, super large industrial bases, and multinational super large energy projects. It is compatible with mainstream global standards and provides top-level global technical services. It is the flagship choice for intelligent and high-power upgrades of high-voltage distribution networks.
This product supports 2500A ultra high power. How to select the core distribution scenario for super large industrial bases?
The selection of core distribution scenarios for super large industrial bases depends on load capacity and production needs. Firstly, for auxiliary distribution in large industrial bases with a load capacity of less than 1600A, the 1600A version is chosen for higher cost-effectiveness and can meet the load requirements of auxiliary distribution; The second is the main power distribution and load capacity of large-scale industrial bases, with a capacity of 1600A~2000A (such as auxiliary workshops in large metallurgical plants and supporting power distribution in petrochemical plants). The 2000A version is selected, which can bear moderate extreme loads and adapt to the main power distribution needs; The third is the core power distribution of super large industrial bases, with a load capacity of 2000A~2500A (such as steelmaking workshops in super large metallurgical plants, core workshops in heavy machinery plants, and reactor clusters in large petrochemical plants). Choosing the 2500A version can bear extremely high loads, ensuring continuous and stable power supply for core production equipment and avoiding large-scale production interruptions caused by load overload. At the same time, multiple equipment collaborative linkage modules need to be matched to achieve load coordination and allocation.
What special equipment is required for the product to adapt to 30km~40km high-power long-distance power distribution?
30km~40km ultra high power long-distance distribution requires three types of special equipment: first, line loss monitoring equipment, using high-precision line loss monitoring modules to monitor the power loss during transmission in real time, optimize the transmission plan in a timely manner, and ensure that the loss is controlled within a reasonable range; Secondly, high-end supporting protection equipment should be equipped with fuses and lightning arresters that are compatible with a voltage level of 24KV. The rated current and short-time withstand current should be matched with a super high power of 2500A. It is recommended to use top-level intelligent protection equipment to achieve intelligent linkage and fault handling with the product; The third is communication and linkage equipment, equipped with high-end communication modules to ensure seamless linkage between the product and the distribution network IoT platform and remote distribution network terminal equipment, realizing remote control, data acquisition, and rapid fault location. At the same time, it can be matched with power quality optimization equipment to improve the power quality during long-distance transmission and avoid voltage and frequency fluctuations affecting the normal operation of electrical equipment.
What specific collaborative operations can be achieved with the addition of device collaboration and linkage functions in the product? How to ensure linkage stability?
The multi device collaborative linkage function can achieve three core collaborative operations: first, load collaborative allocation, which can be linked with other switch devices, transformers, and energy storage devices in the distribution network to automatically adjust the distribution plan according to load changes and achieve load balanced distribution; The second is collaborative fault handling. After discovering a fault, it can automatically link with surrounding power distribution equipment, quickly isolate the fault area, restore power supply to non fault areas, and shorten the fault handling time; The third is data collaborative sharing, which can collaborate with the distribution network IoT platform and intelligent measurement and control equipment to share operational data, achieve visualization and intelligent analysis of operation and maintenance data, and provide data support for distribution network optimization. To ensure the stability of the linkage, two points need to be done: first, strict debugging of the linkage module before leaving the factory, optimizing the communication protocol, and ensuring compatibility with various distribution equipment and platforms; Secondly, during daily operation and maintenance, the linkage module and communication lines should be calibrated and inspected every 12 months to ensure smooth communication and accurate linkage. At the same time, linkage parameters should be updated regularly to adapt to the upgrading needs of the distribution network.
How does this product meet the requirements of international top-level certification and standards for multinational mega energy projects?
To meet the requirements of international top-level certification and standards, four points need to be done: first, standard adaptation, confirming the top-level distribution standards of the target country/region in advance (such as EU EN 50062, American ANSI C37.12), manufacturers can comprehensively optimize product parameters and structural design according to the standards to ensure full compliance of the product; The second is certification application, which involves applying for top international certifications (such as EU CE certification, US UL certification, and Middle East SASO advanced certification) in advance. Manufacturers can provide complete testing reports, type test reports, and certification documents to ensure smooth product access; The third is customized adaptation. Based on the voltage, frequency, and environmental requirements of the target project, a dedicated adaptation version is customized, accompanied by multilingual (English, Arabic, German, etc.) operation manuals and maintenance manuals to ensure that local staff can operate and maintain normally; The fourth is technical support. Manufacturers can provide on-site guidance from international top technical teams to assist in project installation, debugging, and certification acceptance. At the same time, they can provide long-term global operation and maintenance support to ensure stable operation throughout the project lifecycle.
Related Applications
Power distribution for cross-border mega energy projects: Suitable for cross-border mega energy projects such as thermal power plants, hydroelectric power plants, centralized photovoltaic power plants, offshore wind farms, etc., such as high-end energy cooperation projects in Europe, America, and the Middle East. This product can be used as a core switch equipment to be responsible for high-voltage distribution control, load regulation, and fault isolation of the project. The dual frequency adaptation feature can be perfectly compatible with local distribution standards, and the IP68+++high protection level can adapt to extreme environments in different countries (such as extreme cold blizzards in Europe, high temperature and strong corrosion in the Middle East, and desert dust in the Americas). The 2500A ultra high power version can carry extreme high load power supply for mega energy projects, and the global top-level technical service can ensure stable operation of the project throughout its entire life cycle, helping to assist. Upgrading international energy cooperation.
Core power distribution for super large industrial bases: used for the core power distribution system of super large industrial bases (such as super large metallurgical plants, heavy machinery plants, large petrochemical plants, and high-end equipment manufacturing bases), where the electrical load is extremely high, the load fluctuates violently, and there are extreme working conditions such as strong corrosion, strong vibration, high temperature and high voltage, and strong lightning strikes. The 24KV voltage level can meet the flagship demand for industrial high-voltage power distribution, with a voltage of 2500A The ultra high power version can withstand extreme high loads of extra large production equipment such as large steelmaking furnaces, heavy-duty compressors, and large reactor clusters. The fault self checking and multi device collaborative linkage functions can quickly troubleshoot and reduce operation and maintenance downtime. The top-level military grade anti-corrosion shell can resist extreme erosion in industrial scenarios, ensuring continuous and stable production in extra large industrial bases and improving production efficiency and safety.
Ultra high power long-distance high-voltage distribution: Used for ultra high power long-distance high-voltage distribution scenarios (30km~40km) between cities and remote industrial areas, large energy bases, and distribution network main lines. It is installed in long-distance distribution network terminal stations and outdoor switch stations, responsible for converting 35KV high-voltage electricity to 24KV and transmitting it over long distances to the destination. The 24KV voltage level can effectively reduce long-distance transmission losses. The 2500A ultra high power version can carry ultra large load power supply, avoiding voltage drop and load overload caused by long-distance distribution. The intelligent linkage and fault collaborative processing function can achieve load allocation and rapid fault handling, ensuring the stable operation of long-distance distribution, solving the problem of ultra long distance and ultra high power distribution, and helping to further expand the coverage of distribution network.
