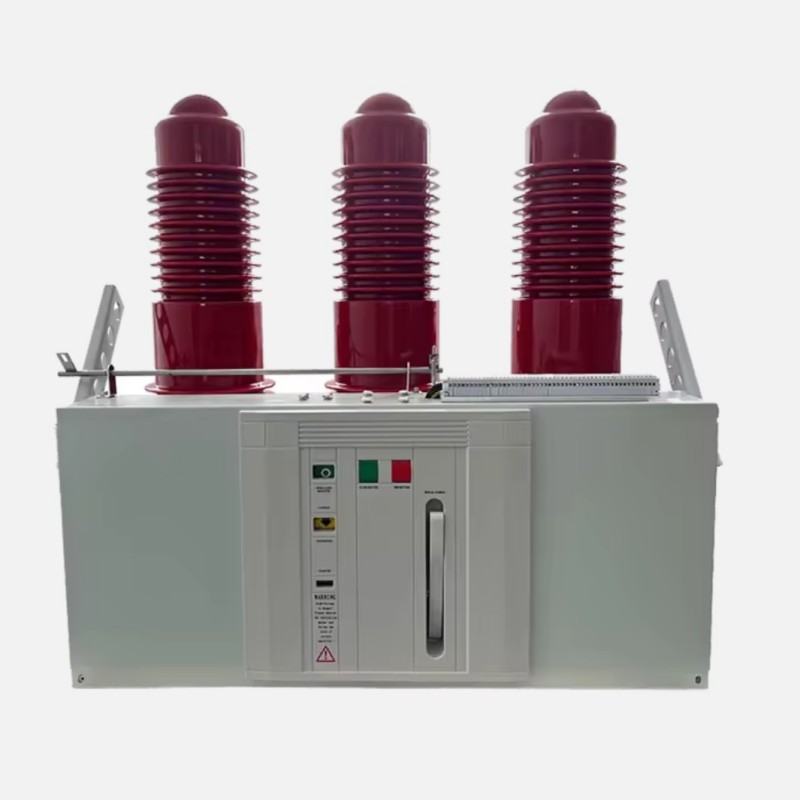

VS1-35 Vacuum Circuit Breaker
The 35KV VS1 circuit breaker is an indoor AC high-voltage vacuum circuit breaker designed for high-voltage distribution network backbone, large substations, and large energy bases. It is suitable for three-phase 50Hz power frequency AC circuits, with a rated voltage of 35KV. Its core applications include 35KV high-voltage distribution network backbone lines, large substation inlet and outlet lines, large new energy base (photovoltaic, wind power) supporting distribution networks, and high-voltage distribution network control and protection for ultra large industrial enterprises.

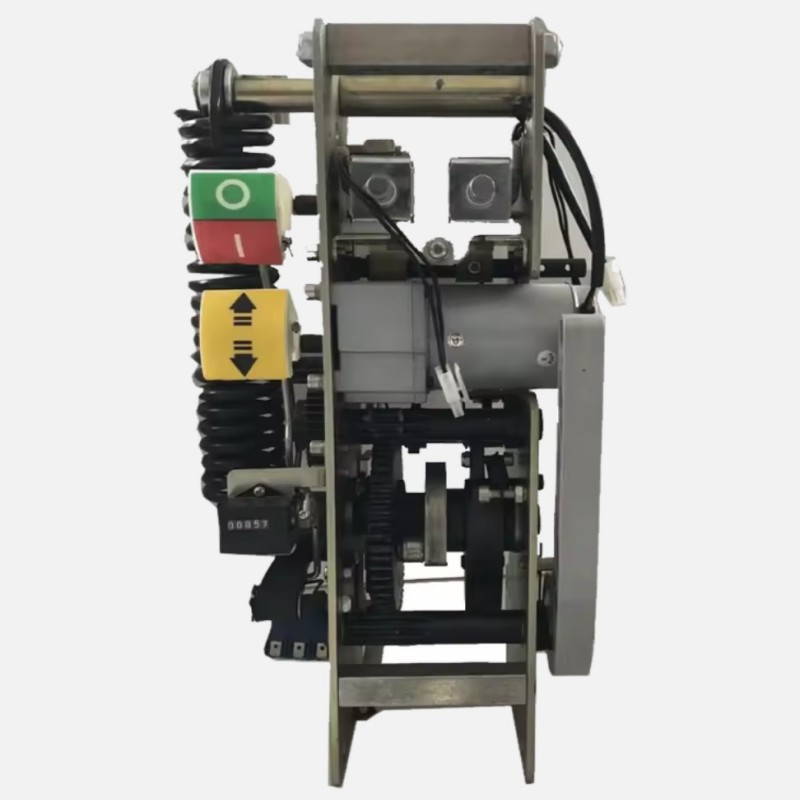

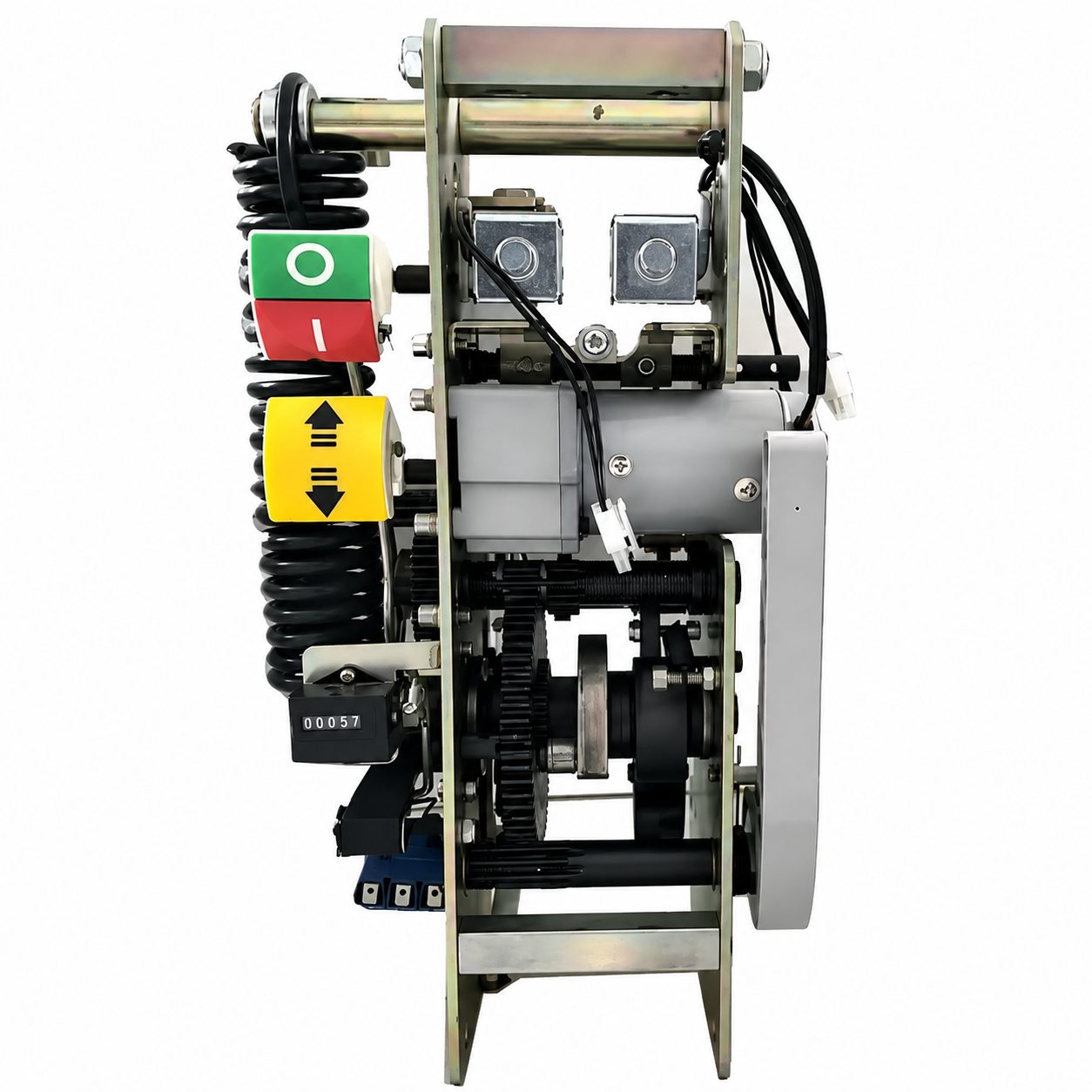

This product adopts a high-end heavy-duty design that integrates the mechanism and circuit breaker. It has a sturdy structure, excellent impact resistance, and vibration resistance. It supports two installation forms: fixed and withdrawable handcart, and is suitable for installation in large high-end high-voltage switchgear. The product is manufactured strictly in accordance with standards such as GB1984, DL/T403, and IEC60056. It uses a large capacity vacuum arc extinguishing chamber and new copper chromium alloy contacts, with fast arc extinguishing speed, strong breaking ability, no harmful gas emissions, and no noise pollution.
It can effectively cope with the ultra-high current, heavy load, and complex fault conditions of high-voltage distribution network backbone and large energy base, quickly cut off overload, short circuit, grounding and other fault currents, ensure the safe and stable operation of high-voltage distribution network and ultra large equipment, and is suitable for working environments with altitude ≤ 4500m (non-standard review required) and ambient temperature of -40 ℃~50 ℃. It is the core equipment of high-voltage distribution network backbone and large-scale energy scenarios.
Features
1. Strong breaking ability, suitable for ultra-high current:
adopting a high-capacity longitudinal magnetic field vacuum arc extinguishing chamber, optimizing the contact material and structure, the rated short-circuit breaking current can reach 63-80kA, and the rated short-circuit closing current can reach 160-200kA. It can reliably break the ultra-high short-circuit fault current of high-voltage distribution network backbone and large energy base, as well as the starting impulse current of ultra large equipment. The insulation recovery speed after arc is extremely fast, supporting multiple reclosing operations, and adapting to the needs of ultra-high current and heavy load operation.
2. Top insulation level and high operational reliability:

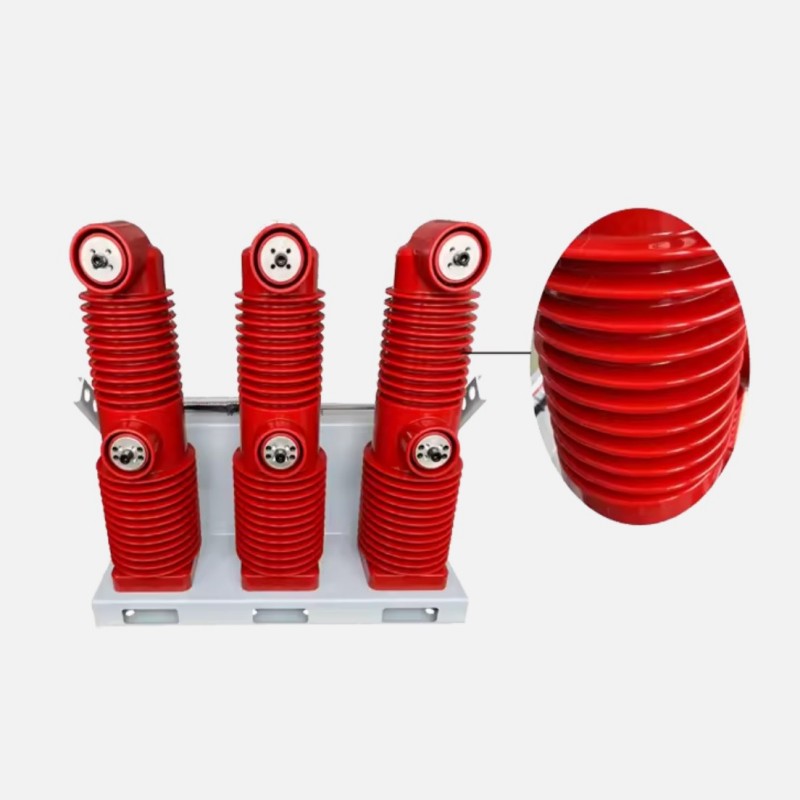

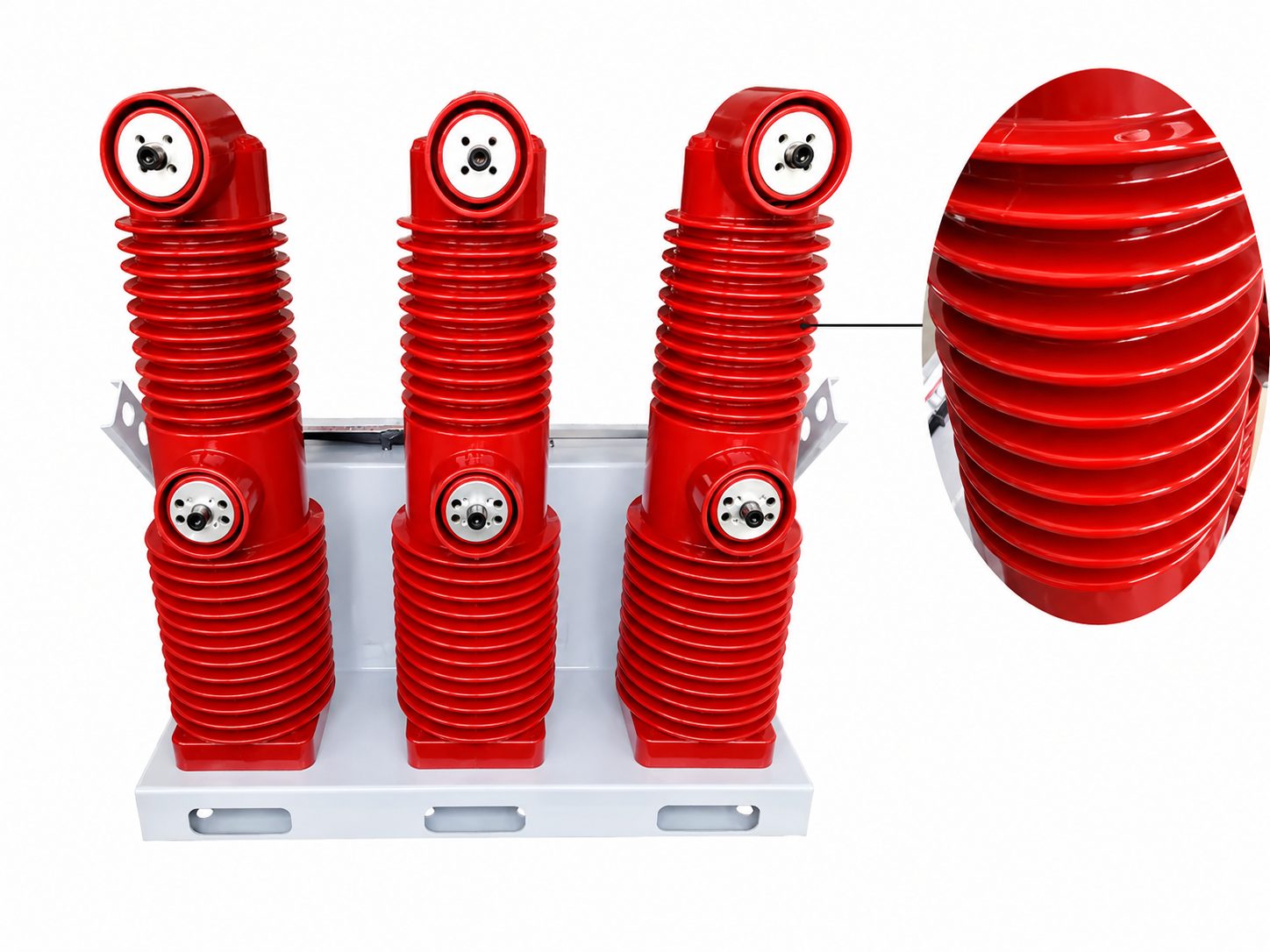

The epoxy resin APG process is used to cast the insulation cylinder as a whole, and special insulation reinforcement materials are added. The anti creepage distance and insulation strength are greatly improved. The rated short-time power frequency withstand voltage (1 minute) can reach 125kV (relative to ground, phase to phase), 140kV (fracture), and the rated lightning impulse withstand voltage (peak) can reach 200kV (relative to ground, phase to phase), 220kV (fracture). It can stably withstand 35KV high voltage loads, effectively resist insulation hazards in high-altitude, high pollution, and high humidity environments, and has no risk of creepage or insulation breakdown during long-term operation.
3. Heavy duty structure with outstanding impact and vibration resistance:
Adopting a heavy-duty mechanical structure design, the body is welded with high-strength steel plates, and the components are subjected to high-temperature quenching and strengthening treatment, resulting in extremely high mechanical strength. The impact and vibration resistance performance far exceeds that of ordinary high-voltage VS1 circuit breakers. The mechanical life can reach 30000 times, and the full capacity short-circuit current breaking times can reach 120 times. The electrical life meets E4 level and can adapt to the complex operating environment of large substations and energy bases, reducing the incidence of mechanical failures.
4. High level of intelligent integration, suitable for high-end operation and maintenance:
Equipped with an integrated intelligent monitoring system, it can monitor current, voltage, temperature, energy storage status, arc extinguishing chamber vacuum degree, and mechanical characteristic parameters in real time. It supports fault self diagnosis, remote opening and closing, remote fault positioning, trend analysis and warning functions, and can seamlessly connect with high-voltage distribution network automation systems and intelligent dispatch centers, achieving full process controllability and traceability of equipment operation status, and adapting to the unmanned and intelligent operation and maintenance needs of high-end high-voltage distribution networks.
5. Strong customization ability and adaptability to multiple scenarios:
Supports customization of rated current, breaking capacity, operation mode, protection scheme, and intelligent functions according to the personalized needs of large energy bases and super large industrial enterprises. It can adapt to special scenarios such as high altitude, high temperature, high cold, and high pollution, and can also be used with high-voltage supporting equipment (such as lightning arresters and transformers). It has strong universality and can meet the personalized needs of various high-voltage distribution network upgrades and renovations.
The rated current of this product covers 3150A~5000A, and different specifications such as 4000A and 5000A can be customized according to scene requirements. The rated short-circuit breaking current is 63~80kA, the rated short-circuit duration is 4s, the closing time is 35~80ms, the opening time is 20~40ms, the closing bounce time is ≤ 1ms, the opening and closing asynchrony is ≤ 1ms, and the contact resistance is ≤ 60 μ Ω, meeting the ultra high current requirements of high-voltage distribution network backbone and large energy bases.
The suitable environmental conditions are: the daily average relative humidity does not exceed 95%, the monthly average does not exceed 90%, the earthquake intensity does not exceed 8 degrees, and there are no places with severe vibration, strong chemical corrosion, explosion hazards, or serious pollution; High altitude scenarios (>2500m) can pass non-standard evaluations and customize reinforced insulation, sealing, and low-temperature protection solutions; In high-altitude environments (below -40 ℃), a low-temperature adaptive operating mechanism can be customized to avoid mechanical jamming caused by low temperatures.
The product meets the KEMA type test A-level certification standard and has passed strict type tests, factory inspections, weather resistance tests, and mechanical impact tests. Each product comes with a complete inspection report, certificate of conformity, and technical parameter manual; Support customized manual/electric operation modes, intelligent monitoring functions, and special protection solutions, with timely supply of accessories.
