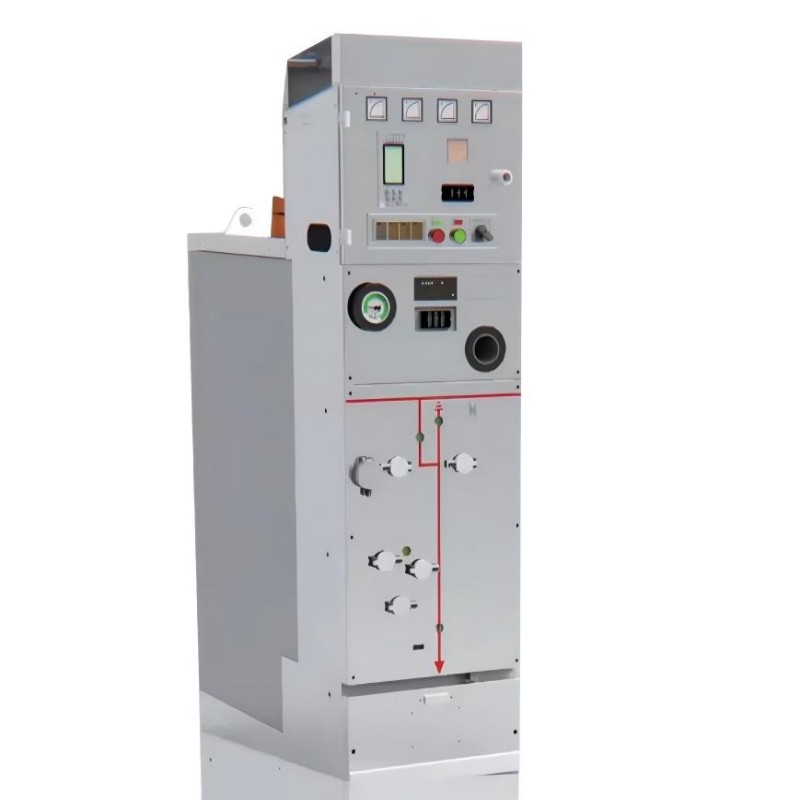

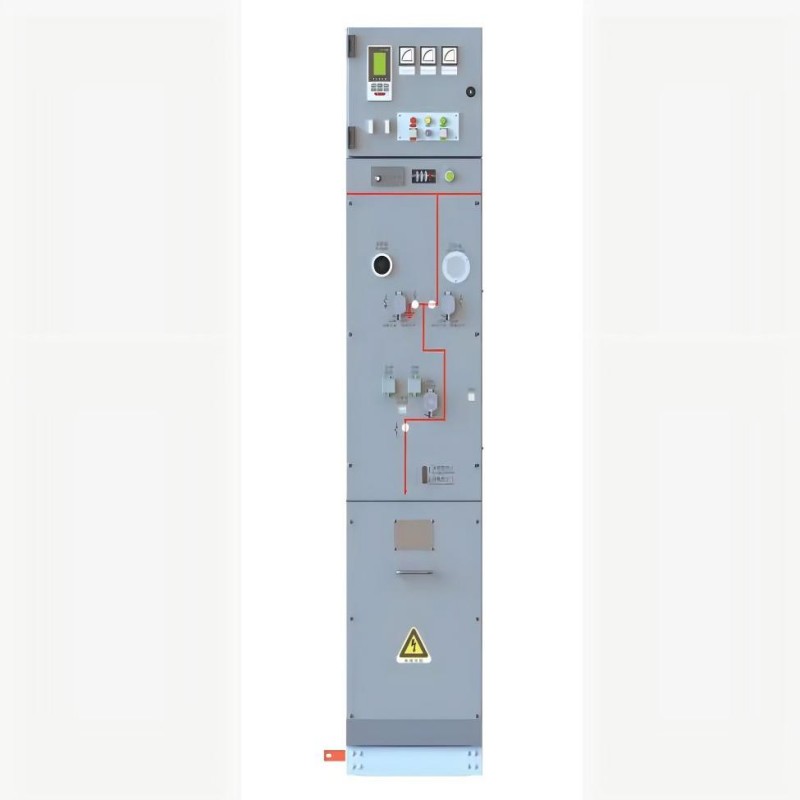

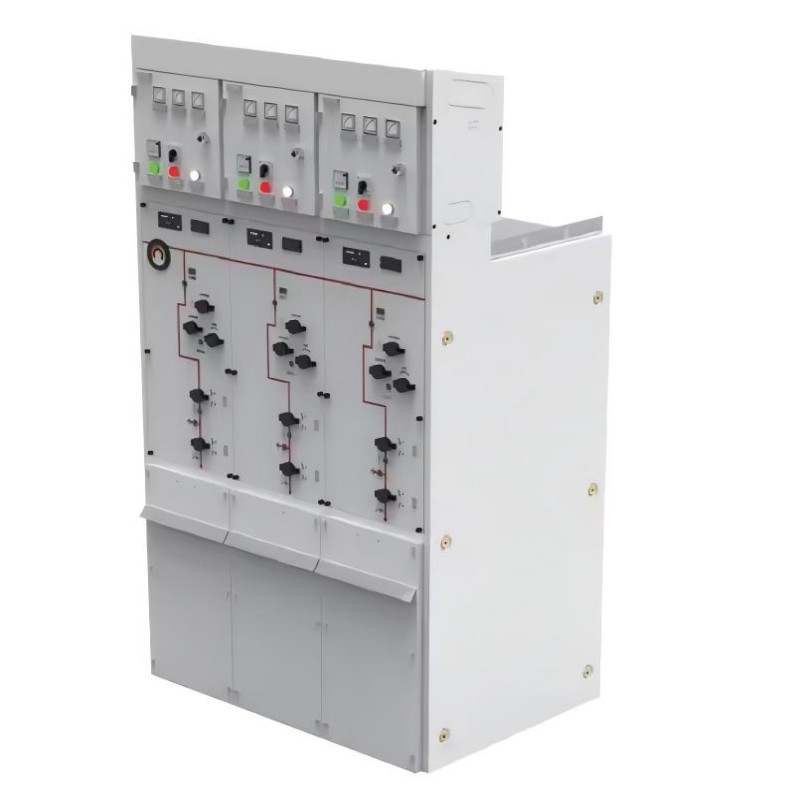

NSHBG-11 Environmentally friendly gas-insulated ring main unit
NSHBG-11 11kV environmentally friendly gas insulated ring main unit is a medium voltage equipment customized for complex overseas scenarios and cross-border projects. It uses a mixture of N ₂ and low GWP fluorinated ketone gas as the insulation medium, integrates international modular design and extreme environmental resistance technology, and its core components comply with the IEC 62271-203 international standard and have passed special certifications in multiple countries and regions. The equipment can be customized with voltage frequency, installation method, and protection level as needed, suitable for overseas mining, tropical agriculture, cross-border data centers, and other scenarios, taking into account international compliance, resilience, and remote operation and maintenance capabilities, to assist in the stable implementation of cross-border project power systems.
Features
1. Full scene customization capability, supporting 50Hz/60Hz frequency switching, voltage fluctuation range of ± 15%, customizable wall mounted, floor standing, and containerized installation structures, suitable for different project site conditions overseas.
2. Tolerant to extreme environments, the air box is made of stainless steel material and ceramic coating technology, with a protection level of IP68, which can resist salt spray, sand and dust, high temperature and humidity, and short-term flood invasion, suitable for desert, coastal, tropical jungle and other scenes.
3. International compliance is worry free, providing localized certifications such as CE, UL, T Ü V, SASO, etc. The gas meets the environmental requirements of the Kyoto Protocol and avoids overseas environmental trade barriers; The fourth is efficient cross-border operation and maintenance, equipped with multilingual intelligent terminals and satellite communication modules, supporting global remote control, and cooperating with overseas warehouse spare parts reserves, the operation and maintenance response speed is increased by 50%.
Rated current range: 630A-2000A, rated short-circuit breaking current: 16kA-25kA, suitable for ambient temperatures ranging from -45 ℃ to+80 ℃, with an average time between failures (MTBF) of ≥ 150000 hours. The air box adopts earthquake resistant design and has passed ISTA 3A transportation certification, suitable for cross-border sea and land transportation bumps and impacts. Support fault recording, harmonic analysis, and partial discharge online monitoring functions, and can be connected to mainstream overseas intelligent distribution network platforms.
Let’s Get Started
Providing you with the most trusted energy solutions in an unpredictable world.
Contact UsRequest an Insurance Quote
Specification
| Serial No. | Item | PT Module | V Module | |
| Disconnecting Switch | Vacuum Circuit Breaker | Isolation/Earth Switch | ||
| 1 | Rated Voltage | 11 | ||
| 2 | 1min Power Frequency Withstand Voltage | 28/32 | ||
| 3 | Lightning Impulse Withstand Voltage | 75/85 | ||
| 4 | Rated Current | 630 | 630 | 630 |
| 5 | Short-Circuit Breaking Current | 20 | ||
| 6 | Short-Circuit Making Current | 50 | ||
| 7 | Short-Time Withstand Current | 20 | 20 | 20 |
| 8 | Short-Circuit Duration | 4 | 4 | 4 |
| 9 | Mechanical Life | 5000 | 10000 | 5000 |
| 10 | Gas Pressure | 0.025（20℃） | ||
| 11 | Annual Leakage Rate | ≤0.01% | ||
| 12 | Arc Extinguishing Method | Vacuum Arc Extinguishing | ||
| 13 | Protection Class | IP67/4X (Tank/Enclosure) | ||
